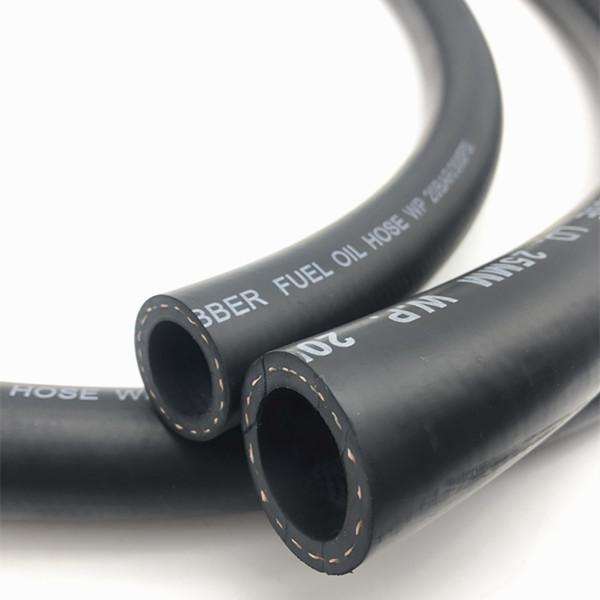

3/8 Inch NBR PVC Flexible Rubber Fuel Hose Polyester Reinforced 300PSI
3/8 Inch NBR / PVC Flexible Black Rubber Fuel Line Hose Polyester Reinforced 300PSI
Construction - Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR / PVC blend rubber.
Temperature: -30ºC to +100ºC
Color: Black, Red, Blue etc.
Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length:
50m, 100m.
Specification:
|
Inner Diameter |
Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.028 | 0.15 |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.0353 | 0.216 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.0442 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.0756 | 0.428 |
| 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 0.0329 | 0.40 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.0572 | 0.60 |
| 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.099 | 0.84 |
| 1-1/4" | 32 | 43 | 10 | 150 | 30 | 450 | 50 | 0.170 | 1.20 |
| 1-1/2" | 38 | 50 | 10 | 150 | 30 | 450 | 50 | 0.190 | 1.39 |
| 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 0.410 | 1.80 |
About PAISHUN

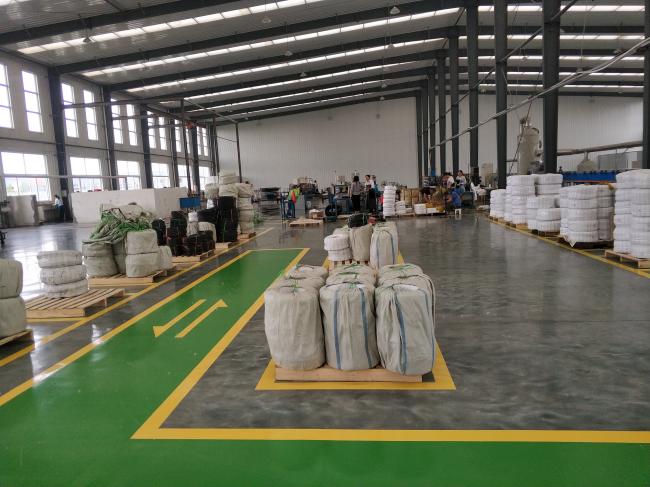

The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines of rubber mixing process, cold feeding
The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
