Waterproof Network IP66 30x Optical Zoom Ir Speed Dome Camera
1522IP30 Network Speed Dome Camera, IP66 water proof for Outdoor application, ONVIF & H265/264 Compatible, 30x optical zoom camera
In general
1522IP30 Network Speed Dome Camera is furnished with 30x optical zoom and IP66 water proof 2 layer housing, which make this PTZ could work all 24 hours to have clear images of personnel, vehicles and other targets at night, and also it can achieve continuous monitoring of day and night.
Features
●H.264/265 compression & ONVIF compliant
●High Die-cast Aluminum Construction
●1/2.8’’ Progressive Scan CMOS, up to 1920x1080, 30x optical zoom
● 25 fps at HD1080p
● Low noise design
●128 preset positions ,6 cruising tracks, each cruising track has 16 preset positions
● Compass display
● 4-Alarm input and 1-Alarm output
SPECIFICATIONS
| Network | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max. Image Resolution: | 40960Kbps 1920×1080 |
| Frame Rate: |
50Hz main stream (1920×1080@50fps), main stream (1280×960@50fps) , main stream (1280×720@50fps); sub stream1 (704×576@25fps), (352×288@25fps), sub stream 2 (1920×1080@50fps), (1280×760@50fps), (704×576@50fps), (352×288@50fps) |
|
60Hz: main stream (1920×1080@60fps), main stream (1280×960@60fps) , main stream (1280×720@60fps); sub stream1 (704×480@30fps), (352×240@30fps), sub stream 2 (1920×1080@60fps), (1280×720@60fps), (704×576@60fps), (352×288@60fps) |
|
| Image Compression: | H.264 /H265/ MJPEG |
| ROI encoding: | Support 2 areas with adjustable levels |
| Audio Compression: | G.711a G.711mu AAC G7221, G726 |
| Protocols: |
IPv4,IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP；PPPoE,ARP,SNMPv1/v2c/v3(MIB-2) ,RTCP |
| No. of Simultaneous Users: | Up to 20 users |
| User/Host Level: | Up to19users,3 Levels: Administrator, Operator and User |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) |
| EZVIZ: | Support |
| Camera | |
| Image Sensor: | 1/1.9" Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On) |
| B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On) 0 lux with IR | |
| Color : 0.02 lux (F1.4, 1/1 sec, 50 IRE, AGC On) | |
| B/W : 0.002 lux (F1.4, 1/1 sec, 50 IRE, AGC On) 0 lux with IR | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 55dB |
| BLC: | ON/OFF |
| Noise reduction | 3D/2D |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1-1/30,000s |
| Day& Night: | ICR Auto or digital color to B/W |
| Digital Zoom: | 16X |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 6.0-180mm, 30x |
| Zoom Speed: | Approx.3.5s(Optical Wide-Tele) |
| Angle of View: | 61.2-2.30 degree (Wide-Tele) |
| Minimum Working Distance: | 0.1m-1.5m(Wide-Tele) |
| Aperture Range: | F1.5-F4.3 |
| Client GUI | |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client |
| Client: | Support |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| Mechanical/Electrical: | |
| Pan speed | 0.1°~200°/s |
| Pan preset speed | 300°/s |
| Tilt speed | 0.1°~90°/s |
| Tilt preset speed | 120°/s |
| Pan angle | 360° Continuously |
| Tilt angle | (-90° to+90°) |
| Preset position | 128 positions |
| Cruise Tour | 6 |
| Communication | TCP/IP |
| Relative humidity | 90% without agglomeration |
| Work temperature | -30 to 55 deg. celius |
| Power supply | AC24V |
| Protection | IP66, TVS4000V, lightning protection, surge protection |
| Weight | 4Kg |

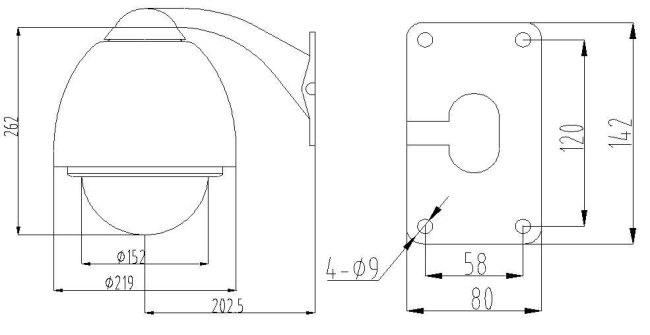

Dimension:
