Sinking Shield Side Entry 1x1 Integrated RJ45 Female Connector Yellow / Green / Red / Blue / Double Color Option

SMD RJ45 Sinking Shield Side Entry Female 1x1 Integrated RJj45 Connector​

Specifications

Material:

1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selectine Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Feature:

1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:

Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:

1. Durability:750 CYCLES MIN

2. PCB Rentention pre-solder:1LB MIN

Environmental:

1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Opration Temperature 0°C~+70°C

Lead-free process,compliant RoHS

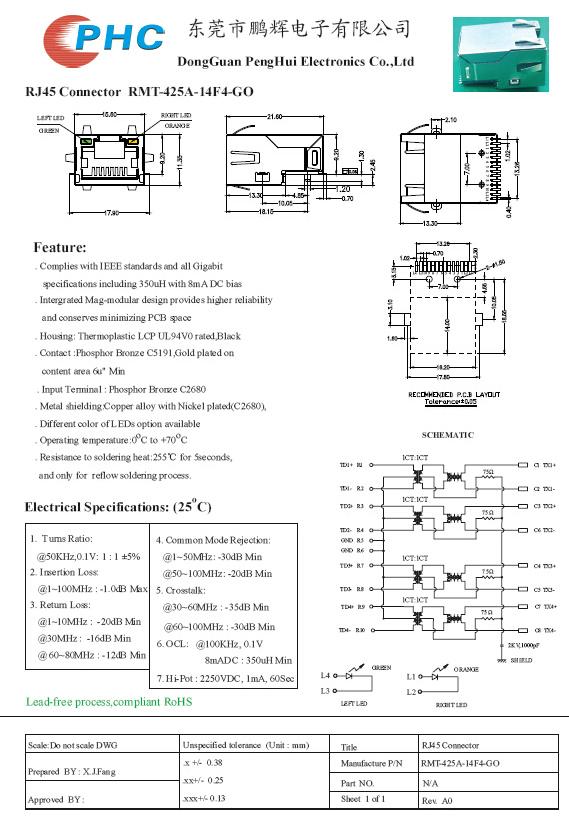

Drawing
