Clip Glass Partition , Soliding Glass Partition Wall ,  Glass Interior Door

Specifications:

Description :

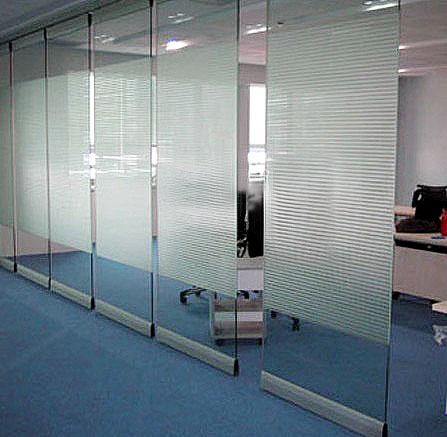

Easy Parking On Movable And Operable Partition System
In their stacked position , the elements form a compact package and can be accommodated in the smallest of spaces depending on the room situation . The low weight of the elements and the associated structural advantages are particularly noticeable here .The four standard stacking or parking track systems offer convenient operability with a minimum of noise from the individual elements as they slide into position on movable and operable partition system .


Bunge Movable And Operable Partition System

The partition system offers a range of suspension systems to suit each installation and application . Here are just some examples .

Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used.

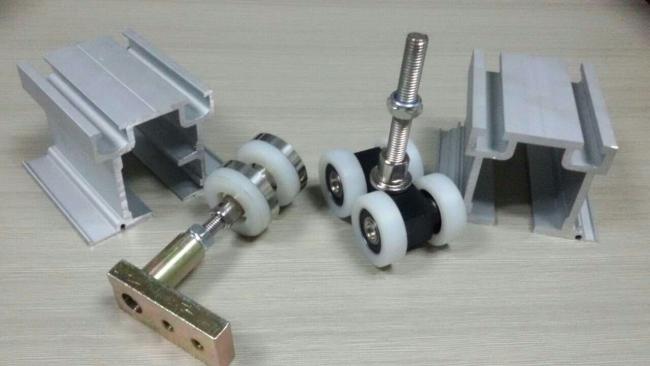

Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .

Trolley :

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
