Seafood Restaurant Room Partition , Hanging Office  Aluminum Sliding Doors

Panels :

The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.

     Basic Panels shall be equal in module.

     Approx. Weight kg/ square meter        :   25 kg

     Maximum height                                  :  4000mm.

Panel Surface Finish :

The panel surface will be as per the clients requirement finished either in BUNGE factory  –  China or by others . The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc .)

Retractable mechanism :

The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode .  Single crank type mechanisms shall activate floor and head seals.

Applications :

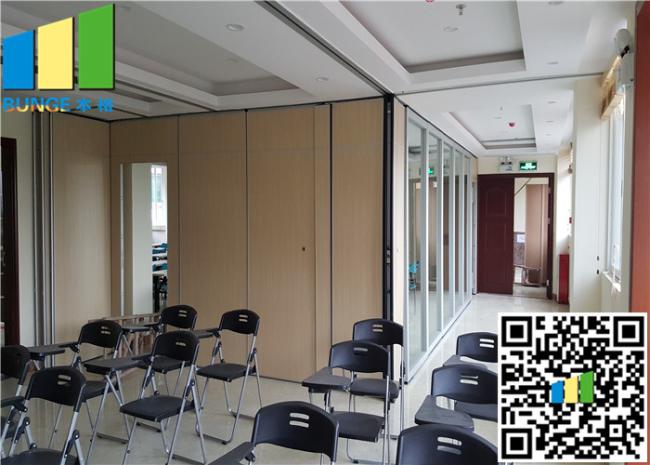

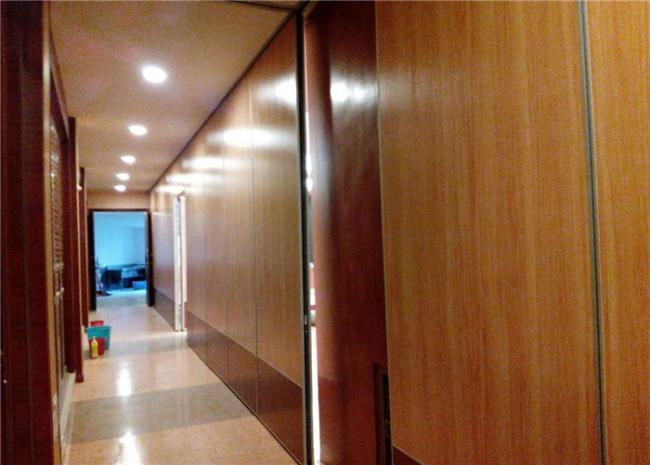

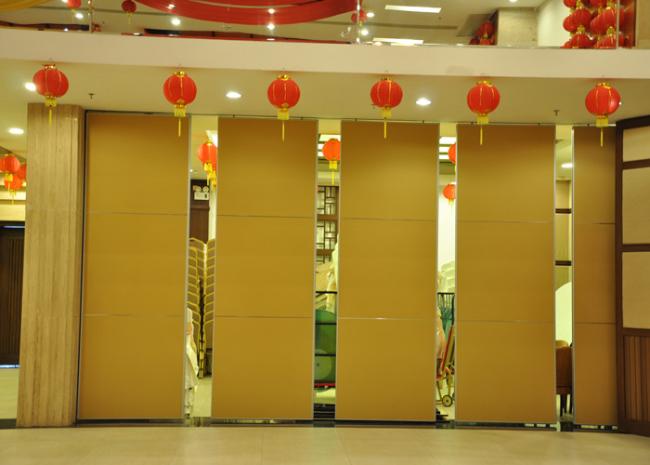

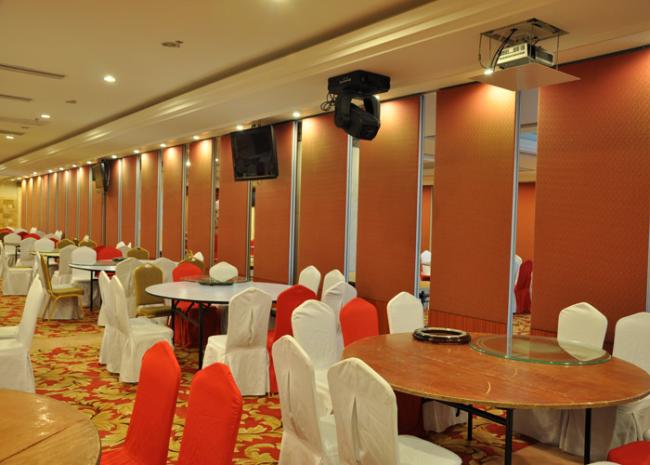

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .

Stacking :

The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.

Applications :

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
