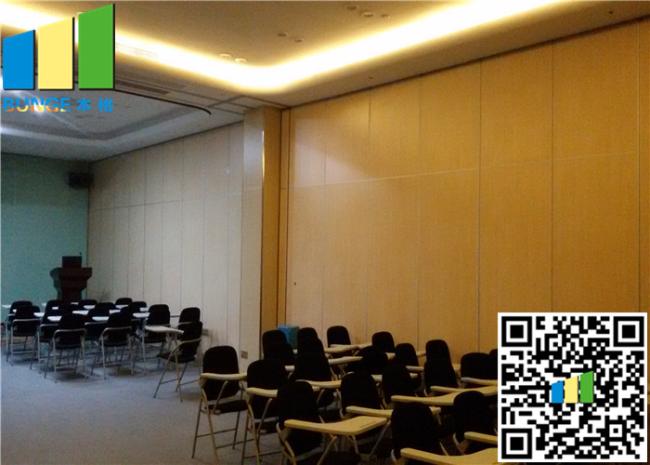

Sliding Folding Partition Walls Office , Acoustic Movable Walls For Banquet Hall

Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails ,

and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall.

The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

Retractable room dividers wide of range face finishes are available : melamine faced MDF or Plywood , fabric , carpet , fabric , artificial , leather , wood veneer , high pressure laminate , Formica , acoustic panel , white boad ect. , panels may also be supplied unfinished for field decoration , Standard frame color is clear anodized aluminum , custom powder coating colors are available.

Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation.

Specifications of partitions:

Features:

• Top hung system without the need for a floor track
• Retractable top and bottom seals ensure effortless movement of panels
• Combines elegance with robust construction
• Concealed or exposed panel edge profiles
• Numerous panel stacking options for complete flexibility
• Sealed for life roller assemblies provide smooth and silent movement
• The system offers various levels of sound reduction
• Extensive range of surface finishes available

Operation of partition:

Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans . When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used.


Trolley of partition:

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .


Applications of partition :


Our products (Folding Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .

We Offer:

◆ A full professional design service

◆ Survey and installation guide

◆ Using top quality materials and components

◆ A fully experienced work team

◆ Maintenance contracts to ensure your valuable asset remains in full work order.
