Spotless Room Dividers / Aluminium Frame Sliding Glass Partition Wall for Office
Spotless Room Dividers Aluminium Frame Sliding Glass Partition Walls for Office
Environmental protection and light material.

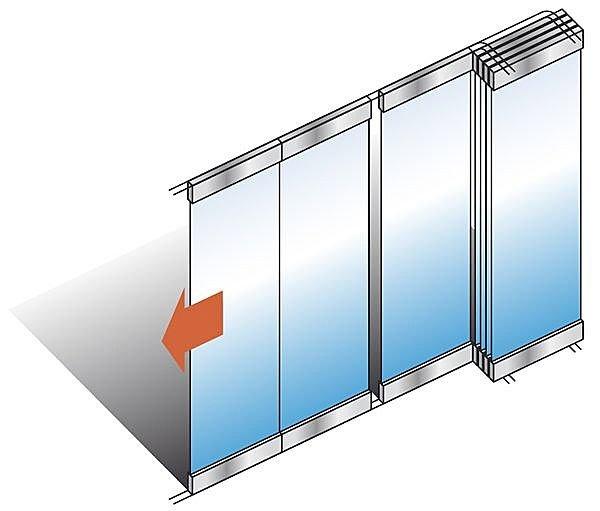

Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Technical Information:
| Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 36mm | 85mm | 85mm |
| Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
| Max height | 3000mm | 6000mm | 6000mm |
| Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
| Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
| Glass thickness | 10mm single glass | 10mm or 12mm single glass | double 10mm glass |
| Fire safety | Optional Class O | Optional Class O | Optional Class O |
| Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
| Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
| Operation of seals | n/a | n/a | |
| Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
| Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
| Sound insulation | n/a | n/a | n/a |
| Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
Advantage:
With more economy and higher decorative, beautiful and safe, will not scratch the skin.
Installation does not affect the construction of smallpox and the ground.
Optional with a variety of occasions partition wall, can be customized according to customer requirements.
In the re-assembly can make full use of building materials.
Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
