Decorative Design China Wooden Acoustic Sound Proof Wall Panels
Decorative Design China Wooden Acoustic Sound Proof Wall Panels

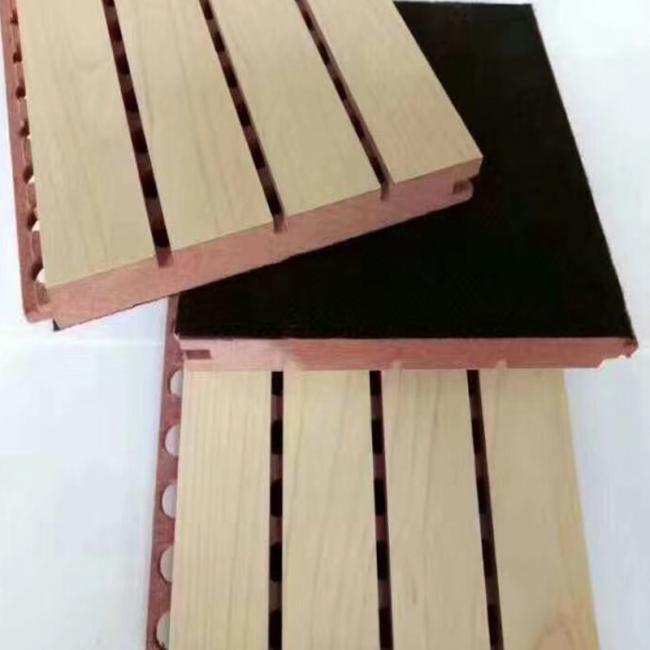

| Grooved Wooden Acoustic Panel | |
| 1.Structure | Basic Material ,Finish&Back Finish |
| 2.Basic Material | E1 MDF,FR MDF ,MGO Combination Board etc. |
| 2. Front Finish | Melamine ,Natural Wood Veneer,Paint,etc. |
| 3. Back Finish | Black Acoustic Felt |
| 4.Standard Size | 2440*133 , 2440*197mm,etc. |
| 5.Standard Thickness | 12/15/18mm |
| 6. Standard Pattern | 13-3,14-2,28-4,59-5,etc. |
| 7. Installation | 1.Lightweight steel keel system2.Wooden batten system |
| 8. Fire rate | can meet China Standard Class B1 and BS476 Part 7 Class 1 |
| 9. Eco level | can meet China and EU Standard Class E1 |
| 10.Applications | gymnasium,hotels,exhibition centers,schools,studio etc. |
| 11.Is customized | can be Customized |
Product Details:
1>>Type for choose:
2 surface 1 groove:59/5 60/4
3 surface 2 groove: 40/3 38.5/4
4 surface 3 groove:28/4 29/3
6 surface 5 groove: 18/3 17/4
8 surface 7 groove: 13/3 14/2
2>>Basic Material:
General, Economic, Fireproof, Moisture-proof, Composite,Magnesium, solid wood etc..

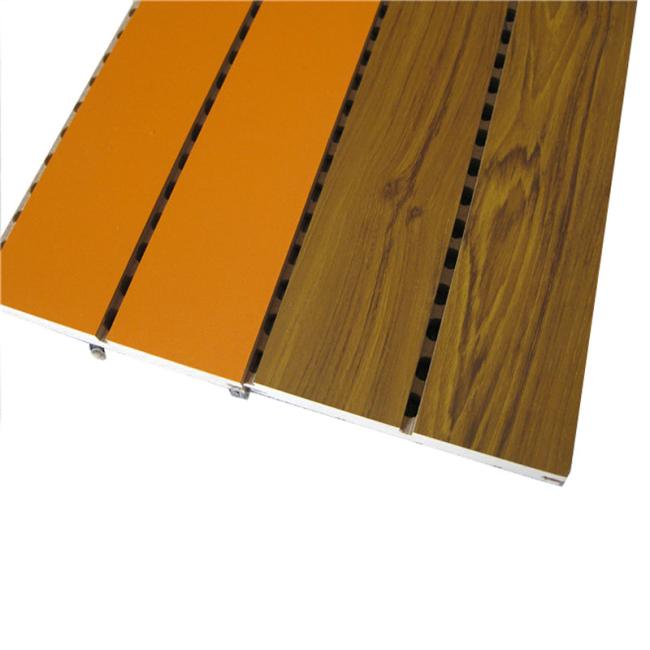

3>>Finish:
Melamine, Natural Wooden Veneer, Fireproof board, Painting, Metal, Technology veneer, Leather etc.
4>>Highest Fire proof Grade
Meet the request of the test basis GB 8624-2012 “Combustion performance classification of building materials and products” A (A2-s1,d0)Grade
5>>Highest Eco Grade
Meet the request of the test basis GB 18580-2001” Formaldehyde emission limits in interior decoration materials, wood-based panels and their products”E1 Grade

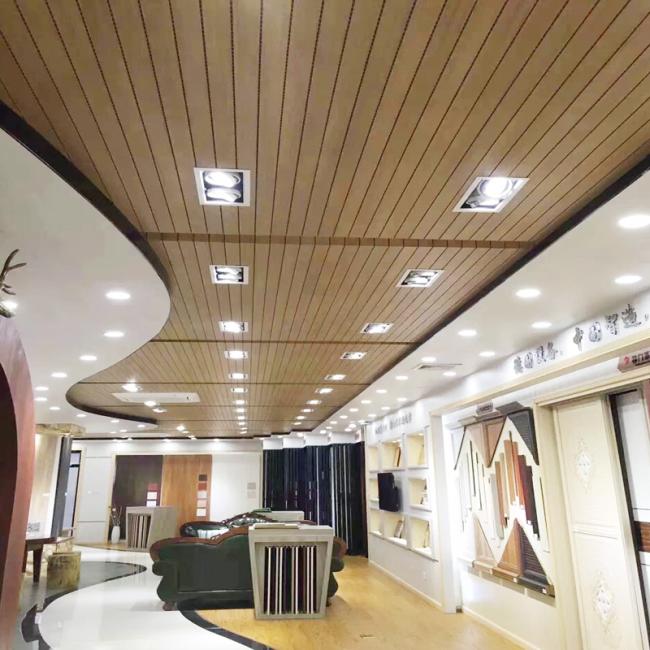

6>>Application:
Suitable for opera, theater, studio, recording studio, studio, room, television, radio, business hall, multi-function hall, conference room, hall, banquet hall, auditorium, gymnasium and other more strict requirements of the acoustic place.
Features:
1. good sound absorption
2. perfect decoration effect
3. enviromental-friendly
4. used for cinema, theater, auditorium, so on
Characteristics:
1. MDF material: Normal MDF, pine MDF, and anti-fire MDF
2. Finishing: Melamine, natural wood veneer
3. Acoustic tissue: It's black color, sticked at the back side of the panel; It have anti-fire and sound absorption function.
4. Size: 2440x128x 12mm / 15mm / 18mm
5. Main hole Items: 13/3, 14/2, 28/4, 59/5
6. installation: use light steel keel and nail to fix
| Model | QS-WG15A-M | QS-WG15B-W | QS-WG15C-P |
| Thickness | 15 mm | 15 mm | 15 mm |
| Pattern | 13-3 | 14-2 | 28-4 |
| Finishing | Melamine | Wood Veneer | Painting |
Wooden Grooved Acoustic Wall Panels
Acoustic absorption is usually defined in terms of an absorption coefficient(usually denoted
by the Greek letter alpha, α), defined as the ratio of absorbed to incident sound energy
from a single interaction between a sound wave and a certain material. Absorption coefficients range from 0 to 1 and vary with frequency, α=0 means that the material absorbs no sound and reflects all sound energy incident on it. α=1 means that the material absorbs all sound energy incident on it and reflects none. Absorption coefficients of 0 and 1 are ideal values that do not exist in reality because all materials reflect and absorb some sound. In general, materials having absorption coefficients less than 0.15 are considered to be reflective and those having absorption coefficients greater than 0.4 are considered to be absorptive.
As you can see our Testing report show that our products have a very good performance in
a large range of application.
