Sound Proofing Operable Office High Partition Wall Commercial Furniture

1)How to select the suitable sound proof partitions for your site?

We have 4 types of sound proof partitions, 65type, 85type, 100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,

65type-- Max height 3.5m, soundproof: 38dB to 43dB

85type- Max height: 5.5m, Soundproof: 43dB to 53dB

100type--- Max height: 7m, Soundproof: 43dB to 58dB

125ultra-height---Max height: 17m, Soundproof: 38dB to 58dB


2) What is finishing face?

The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.

3)What is Procurement procedure?

Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the sound proof partitions layout drawings for your confirmation
Thirdly, we quote the sound proof partitions in accordance with confirmed drawings.


4) How do the goods packing.

Corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.

5)How to transport.

Sea transport is a common mode of transportation. In an emergency, can be air freight.

6)What is lead time?

The lead time is 7 days to 10 days.

7)How to install.

We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.

8)What you should do on site?

A steal beam(truss) should built on site for track installation.

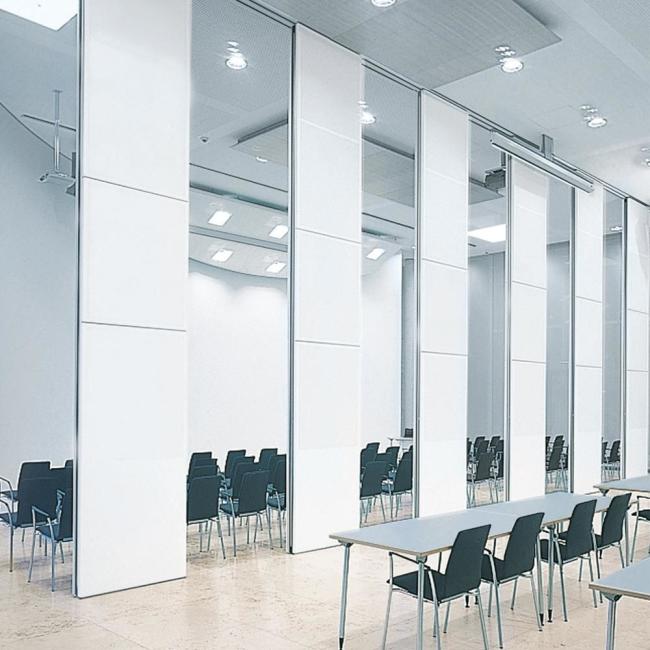

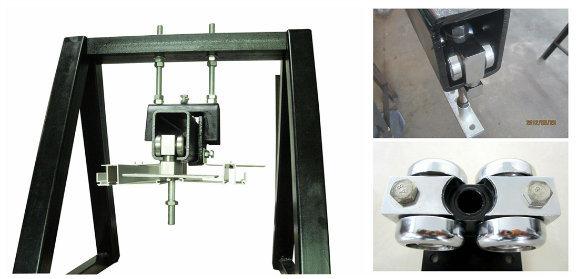

Ultra-high type is designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.,


Specification
