Banquet Hall Acoustic Folding Wooden Partition Wall with Aluminum Track

Banquet Hall Acoustic Folding Sliding Wooden Partition Walls with Aluminum Track

Specification

What is our function?
The BUNGE acoustic sliding wooden partition is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.

How to work?
These sophisticated acoustic wooden partition walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
The Neuwall operable wall system comprises panels up to 1200 mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panel.

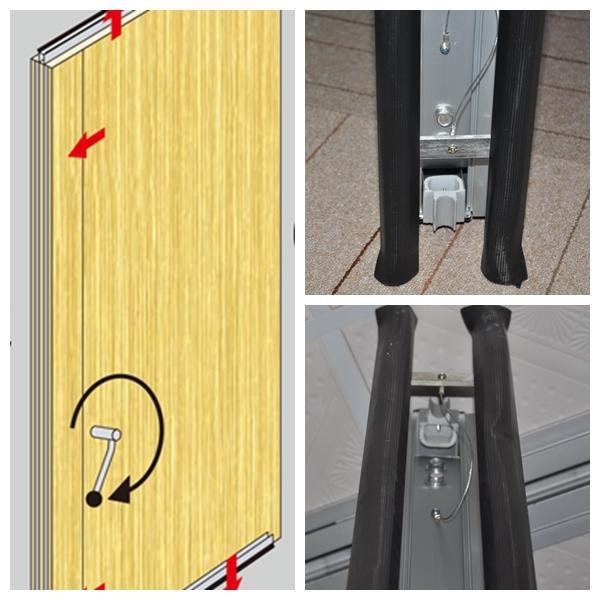

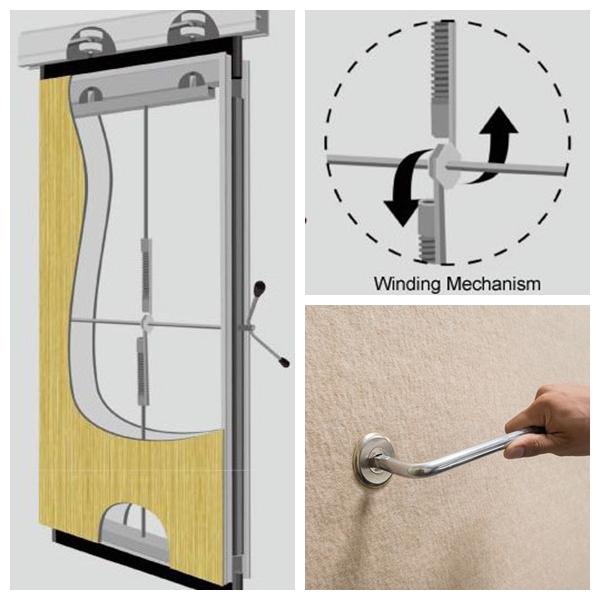

1.Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

2.Retractable Pressure Seals--Once the panel is positioned, they are sealed in place with retractable pressure seals

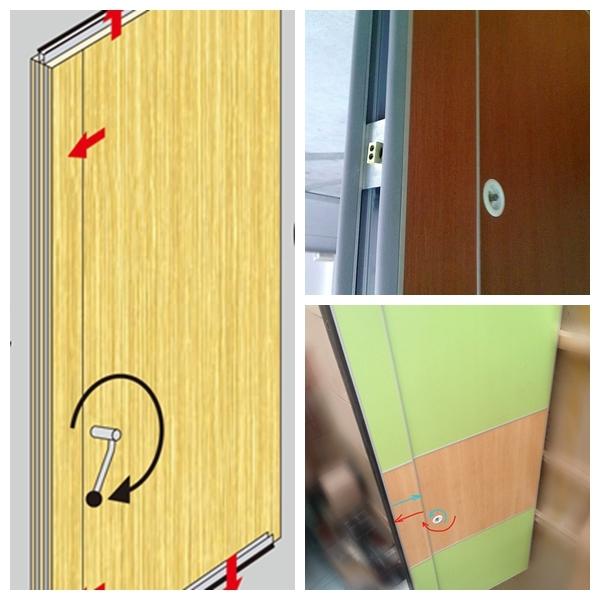

3.Telescopic sleeve panel--Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.

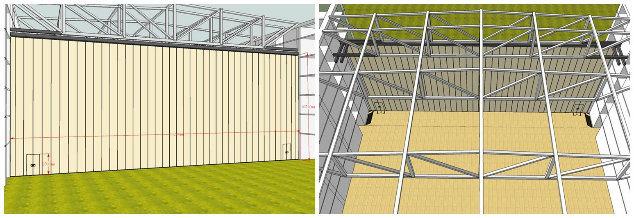

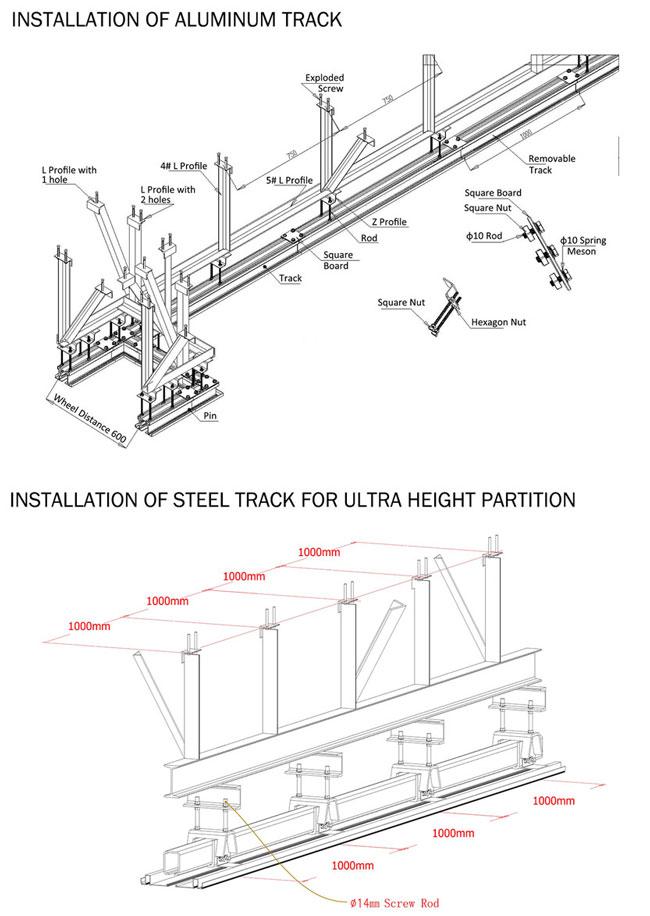

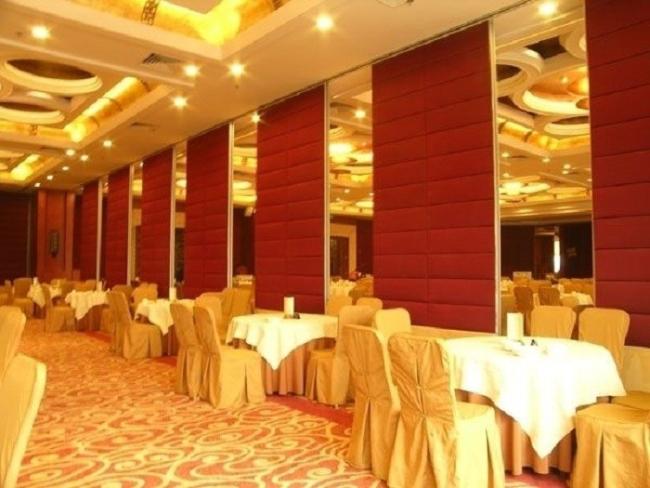

Ultra-high type is designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.,
