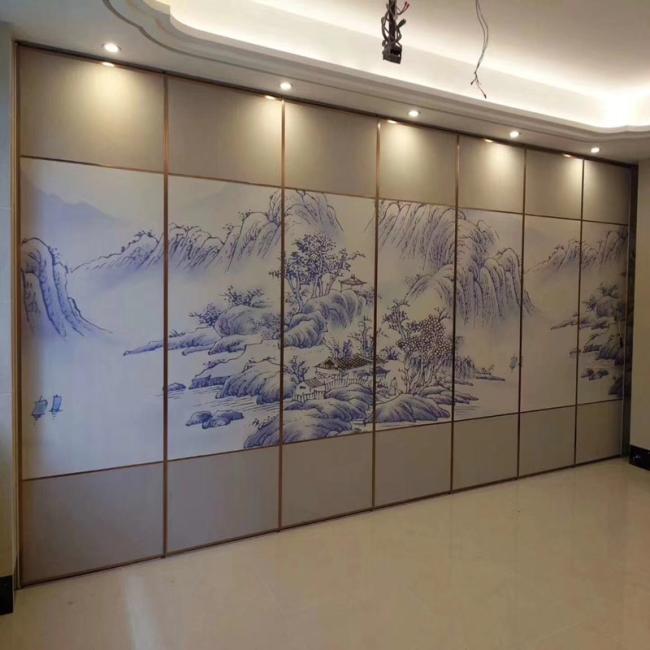

Sliding folding partition walls details
The sliding folding partition walls series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in sliding folding partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.
The vertical channel of each sliding folding partition wall panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound insulation sliding folding partition walls are available in three thicknesses, 65mm, 85mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).
When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure sliding folding partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.
For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
Sliding folding partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of sliding folding partition walls system.
Sliding folding partition walls technical information
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60# 80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
Siding folding partition walls advantages
High specification ceiling track system.
Sound rating from Rw 30 to 50 dB.
Exposed protective edge or concealed profiles.
Individual plate is suspended from the top track.
Various stacking arrangements.
A telescopic seal locked between the track and the floor.
Access door is available for operable partitions.
The surface treatment may be used in hardwood veneer, vinyl, melamine, laminate or spray.
Allow rooms to be completely private.
