Melamine Board Movable Partition Walls , Aluminum Sliding Room Partitions
Aluminum Sliding Room Partitions Operable Movable Partition Walls
Product Description
| Series | Thickness (mm) | Applied height (m) |
Width of Intermediate panel (m) |
Acoustical reduction coefficient (db) |
Hanging weight |
| 65 | 65 | 2.0~4.5 | 0.6~1.2 | 32-36 | 30kg/m2 |
| 80 | 80 | 3.0~6.8 | 0.6~1.2 | 35-45 | 35kg/m2 |
| 100 | 100 | 5.0~8.0 | 0.6~1.2 | 43-53 | 45kg/m2 |
| 125 | 125 | 7.2~13.3 | 0.6~1.2 | 53-60 | 65kg/m2 |
Interior decorative partition Character:
A> Galvanized sheet base board: Sound insulation coefficient RW=36dB, the density is 30kg/m2;
B> MDF or plywood base board: Sound insulation coefficient RW=32dB, the density is 24kg/m2;
C> Magnesium board base board: Sound insulation coefficient RW=26dB, the density is 25kg/m2;
Interior decorative partition Usage: It is widely used at 2m~3.5m height.
Features of Movable Partition Walls
1) Good performance of sound insulation, thermal insulation and Fire prevention;
2) Save much space for your building;
3) No tracks on the floor, it’s easy to install and remove;
4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition hall, Function room and office.
· Aluminum or steel top hung system .
· Retractable top and bottom seals ensure effortless movement of panels and sound-proof.
· Concealed or exposed panel edge profiles
· Sealed for life roller assemblies provide smooth and silent movement
· Several levels of sound reduction
· Extensive range of surface finishes available
| Series | Thickness (mm) | Applied height (m) | Sound Insulation(db) | Referenced Weight |
| 65 | 65 | 2.0~4.5 | 32-45 | 30kg/m2 |
| 80 | 80 | 4.0~6.0 | 35-48 | 35kg/m2 |
| 100 | 100 | 6.0~8.0 | 40-52 | 45kg/m2 |
| Item | Movable Partition Wall |
| Material | Melamind,MDF Board |
| Type | Acoustic Folding Partition |
| Surface Finish | 2. MDF board with Fabric Or Leather Finish |
| 3. Plywood Or MDF base board without any finish | |
| Size and Design | Customized |
| Opening Style | Folding |
| Structure | Aluminum track, Trolley bearing, Acoustic Door Panel |

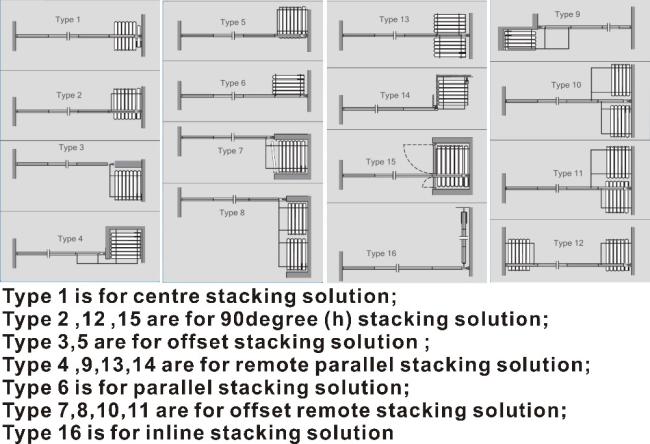

Easy Parking on Movable and Movable Partition Wall System
In their stacked position, the movable partition walls panel form compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the panel and the associated structural advantages are particularly noticeable here. The four standard stack or parking track systems offer convenient operability with a minimum of noise from the individual panels as they slide into position on movable and operable partition system.We offer a range of suspension systems to suit each installation and application.
According to the project's actual size, combined with precise design of the auxiliary track, the movable partition can fold orderly, flexible and diverse collection.
