Aluminum Sound Proofing Folding Movable Partition Walls for Banquet Hall
Aluminum Sound Proofing Sliding Movable Folding Partition Walls for Banquet Hall
Folding Partition Wall Panels :
The folding partition wall panels will be made from 12mm MDF boards and shall be 85mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction .The panel faces shall be finished with selected material .
· Basic Panels shall be equal in module.
· Approx.Weight kg/ square meter : 28kg
· Maximum height : 6000mm.
Folding Partition Wall Panel Surface Finish :
The folding partition walls panel surface will be as per the clients requirement finished either in BUNGE factory - China or by others.The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
Retractable mechanism :
The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode .Single crank type mechanisms shall activate floor and head seals .
Seals :
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum or Steel Track |
| Roller on panel: | Single or double roller. |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals: | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module: | 700mm - 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes: | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance,Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels,exhubition halls,restaurants,multi-functional rooms etc. |
Application

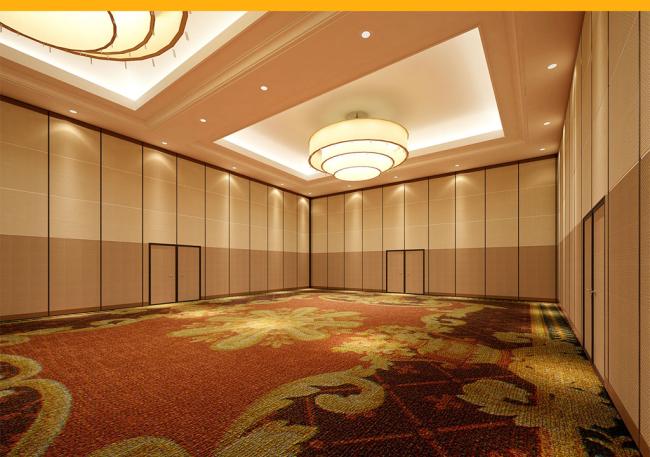

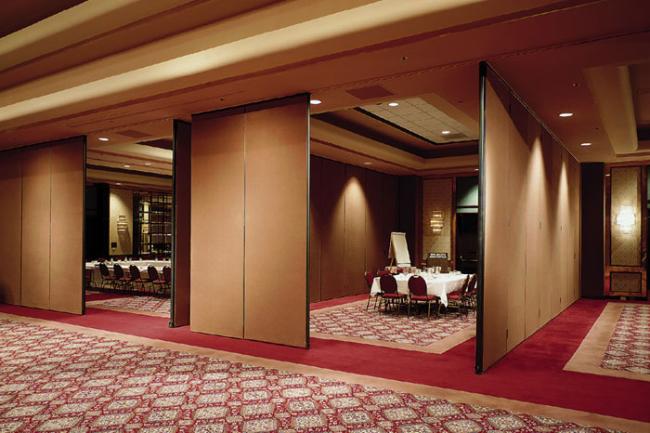

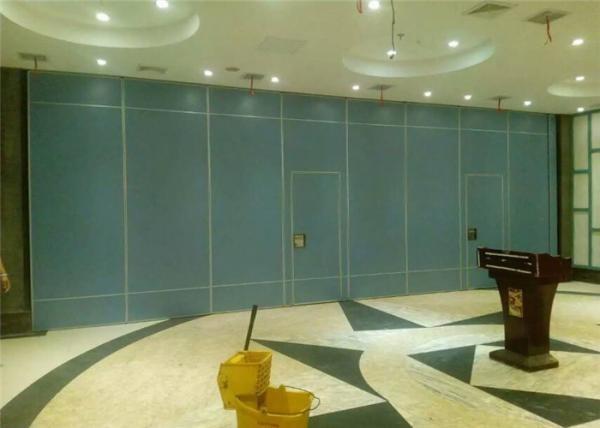

Our products (Movable Folding Partition Walls) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
