Wooden Grooved Sound Proof Partition Walll for Meeting Room / Exhibition
Exhibition Soundproof Partition Wall Wooden Grooved Acoustic Panel for Meeting Room
Surface: Melamine / Wooden Veneer for option
Core
1,Normally MDF core, low formaldehyde with E1 standard
2,Fire-resistance MDF core, which is low formaldehyde with E1 standard and also B1 rating for fire-resistance level for option.
3,MGO core, which is characterized with high fire resistance level with A standard.
4,any required core materials could be replaced.
Back: sound-absorbent black veil on the back of the panels.

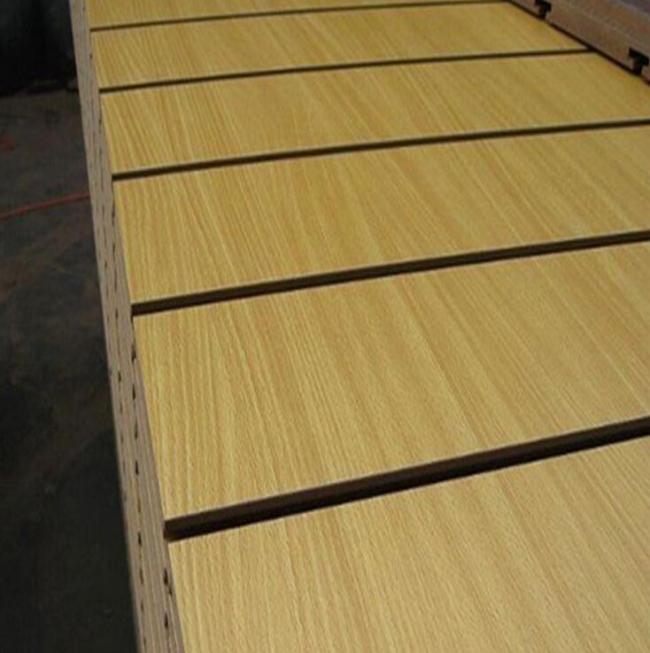

BUNGE Wooden Groove Wooden Acoustic Panels is wildly used in public area with it's good sound effect, variety of color and durable finishing. The panels have longitudinal grooves and slats, machined along the length of the panel.These panels are consist of a laminate finished surface, base core board and black acoustic felt attached on the back. The base core board is an 15mm thick MDF sheet (Middle Density Fiberboard) with a finish laminated to its front face and black acoustic felt adhered to its rear face. It is suitable for dancing hall, hotel, school, exhibition, office, lecture theater etc.
|
Model
|
QS-WG15A-M
|
QS-WG15B-W
|
QS-WG15C-P
|
|
Thickness
|
15 mm
|
15 mm
|
15 mm
|
|
Pattern
|
13-3
|
14-2
|
28-4 |
|
Finishing
|
Melamine
|
Wood Veneer
|
Painting
|
Description:
BUNGE is the cellular PVC designed to store and organize your garage. Used as a complete wall or as a
complement to your existing garage storage, Slatwall allows a flexible layout that easily adapts to your
storage needs.
Keep the garage clean by hanging everything from power tools to rakes to cabinets on the Slatwall system.
When it gets dirty, spray it down with a hose - Slatwall is impervious to water and the unique profile prevents
water from pooling at the bottom of the slat.
Strong and Durable.
Water and moisture resistant, easy to clean.
Smooth satin finish gives high-end aesthetic appeal.
Somewhat scratch resistant with normal use, surface scratches can be easily repaired and are less
noticeable because the material color is throughout product.
Available in 8 and 4 foot lengths, custom lengths available.
Compatible with standard slatwall accessories.
| Model type | 28/4,30/2,29/3,14/2,13/3,59/5,5/3,40/3 |
| Size | 130*2440 |
| Thickness | 12,15,18mm |
| Finish | melamine,veneer, |
| paint | UV,PU painting |
| Base material | Standard MDF, Eco-pine wood MDF, Fireproof MDF, Moistureproof MDF, Magnesium Composited MDF |
| MDF density | 680kg/cubic meter~830kg/cubic meter |
| Backside finish | Fiber proof acoustic fabric |
| Fireproof grade | GB8624 2006 B,A |
| Eco-protection grade | E0,E1 |
| Installation | aluminum keel and clips, wood frame, gun nail |
| Backside hole diameter | 10 mm |
| Interval | 2~4mm |
| Veneer type thickness | 0.3,0.6mm |
| Veneer texture | Mountain texture, straight line |
| Veneer tree species |
Maple,cherry,Oak, teak,walnut, Sapele,beech,birch, Chinese walnut,macore,sandalwood |
| Certification | BV,CE,SGS,ISO9001-2008, |
| Test report | Eco protction, sound absorption, flame retardant |
How to order the wooden grooved acoustic wall panels
1. Check the quality of our product and also confirm the price
2. We make PI to you according to the requirement
3. Confirm order and pay a deposit
4. Once we received the deposit, will arrange production ASAP
5. Keep an eyes on every steps of the production process--
6. Production completed
7. Notify you with the details of the goods and ready to pay the balance
Application
1. Professional space for timbre effect and decoration: Studio, recording room, listening room, rehearsal hall etc.
2.Recreational place for sound effect and decoration:Theater,cinema,indoor gymnasium, disco,KTV etc.
3. Sound-absorbing place for secret or privacy and decoration
