Multi Color Aluminium Operable Track Sliding Door System / Office Wooden Partition Wall

Price Negotiable
Price: 107 / 136 dollar per square meter
MOQ: 10 square meters
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Brand: BUNGE
Product Description

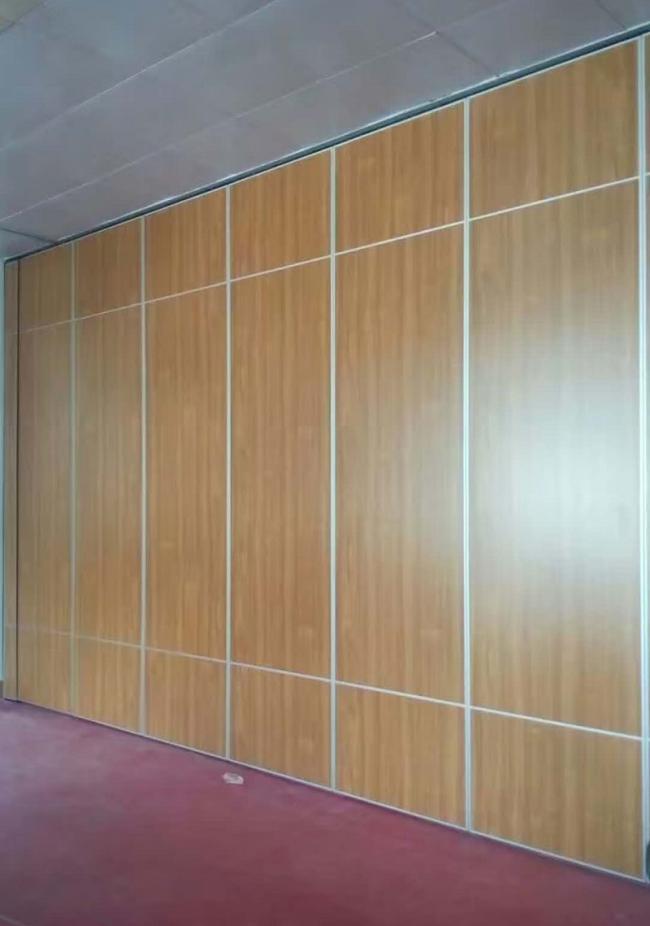

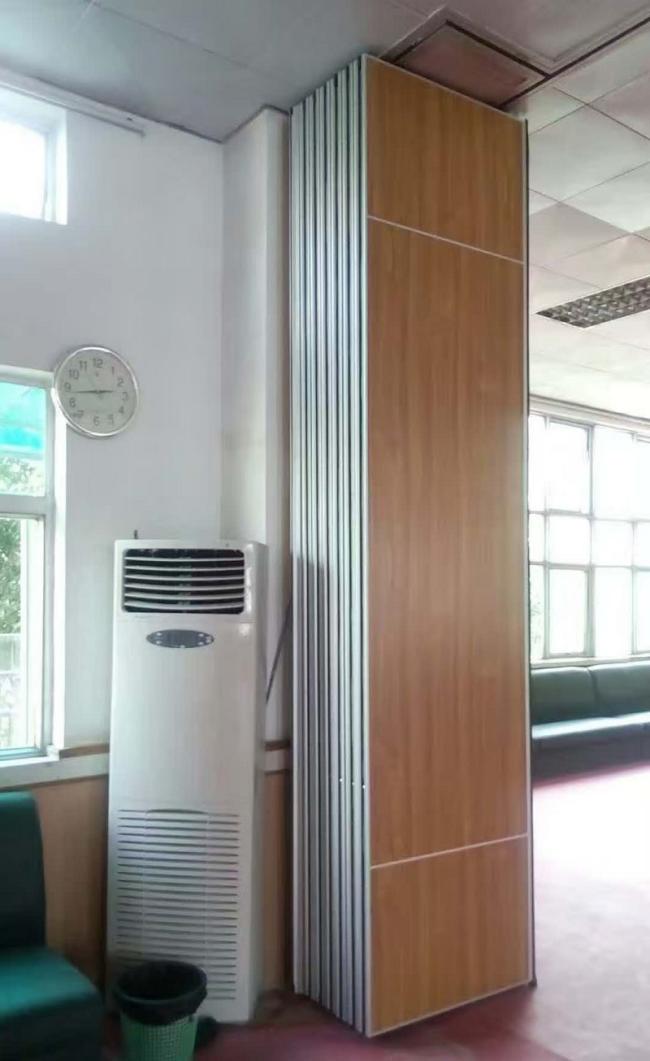

Aluminium Operable Sliding Door Office Movable Partition Wall


Description:

Finally an innovative solution that the contemporary lifestyle. It has invented residential movable partition
walls. The compact area of an apartment becomes Flexibly thanks to movable partitions which allow for dieter ways of living available space.This will give further options to architects and interior designers, enabling them to project and create an intelligent new contemporary luxury.

The movable partitions owner the ideal solution in view of their acoustic insulation index from Rw=35 dB to Rw=53 dB.

Application:

Installation of one of these partitions will divide the domestic environment, physically or acoustically,
into two or more independent spaces. For example, kitchen/living room, living room/study, living/sleeping areas, playroom/bedroom, living room/gym, and double/single rooms.These systems are made up of independent elements having a convenient minimum thickness of 12 mm or 9 mm. They slide and position themselves from an overhead ceiling-mounted aluminium guide.No guide or bottom rollers are necessary. There are no limits to possible panel surface which include melamine, laminates, vinyl, fabric, wood.

In this realization, the studio/room environment is separated from the living room by the movable partition walls covered with decorated fabric; an original solution combining functionality and requirement in the choice of materials and colors.



Freature:

Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.

Technical information:


TYPEBG65BG85BG100
Panel suspensionTop hung only
Track systemSingle or twin point
Panel thickness65 mm85 mm100 mm
Panel heightUp to 4000mm,heights greater than 3000mm refer to our technical dept.Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height4000mm6000mm18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

FrameAluminumAluminumAluminum
Surface material9mm9mm12mm
Fire safetyOptional class IOptional class IOptional class I
Vertical profilesAluminum, anodized with sealing profiles, painter optionalAluminum, anodized with sealing profiles, painter optionalAluminum, anodized with sealing profiles, painter optional
Retractable sealsAluminum, black with double rubber sealsAluminum, black with double rubber sealsAluminum, black with double rubber seals
Operation of sealsManual, with supplied operating handle
LockingOptional lock to passing doors
Passing doorsSingle open in one panel or double open in two panel
Sound insulation32-38dB Rw36-45dB Rw42-55dB Rw
WeightApprox 22-35kg/sq MApprox 25-40kg/sq MApprox 30-48kg/sq M




Custom design information:

As well as a wide range of standard models of movable walls and partitions, on request, the technical department can create extremely functional projects customized to the specific needs of our clients. The continual evolution in ways of utilizing and living space means that the requirements of our clients are many and various. Transforms these requests into customized products to satisfy both designer and client.It vocation is to use form, structure, materials and colour to create infinite solutions in movement.
