Malaysia Wooden Movable Sliding Partition Walls for Restaurant 85 mm Width
Malaysia Restaurant Sliding Partition Wall Hotel Wooden Movable Walls

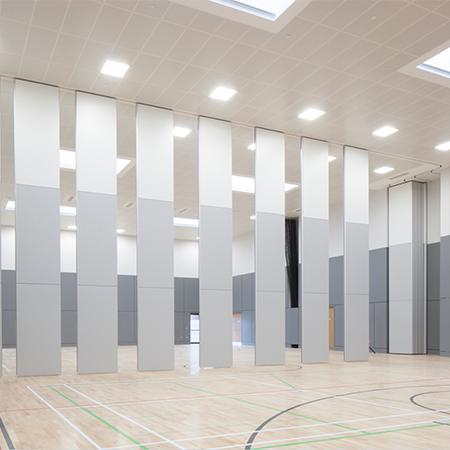

Sliding partition walls details
The acoustic seal to each panel is achieved by interlocking long edge profiles and retractable top and bottom seals. These seals lock between the head track and the floor and are operated by a handle which is inserted into the vertical edge of each panel. Our preferred method is where the handle is only moved through 90 degrees; this will achieve the desired acoustic seal and is a quick and easy method for the end user. We can, however, offer a continuous winding mechanism on request.
Various designs of interlocking profile are offered to compliment the face finish and aesthetic appeal of the walls. The majority of the walls we produce are finished in either real wood veneers, vinyls, laminates and melamines or spray painted. Most face finishes are possible, our technical team would be keen to discuss any special requirements. Class 1 or Class O surface spread of flame can also be provided.
Integral pass doors can be included in any wall system and these will meet current Disabled Regulations if so desired. The last panel of most walls has a telescopic nose, which is face operated. This panel is used to finally close the wall. Supported by years of experienceand development expertise, MultiSpace offer a high degree of quality and expert solutions to your movable wall requirements.
Sliding partition walls features:
Top hung with no floor track required
High acoustic ratings up to 53dB (independent laboratory tested) available
Retractable acoustic seals at top and bottom of each panel operated either by a quick release handle
Single or twin point suspension for central or offset stacking options
Variable track arrangements
Junction panels enable corner, three or four way abutments
Panel finishes include Melamine Laminate, Veneer, Vinyl, Magnetic Dry Wipe Whiteboard or Painted
Optional inset pass doors, fully glazed panels and vision panels
Closure panel fitted with face operated telescopic "nose"
Technical data of Type 65 movable partition :
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Advantages:
• Solves complex layout challenges
• Intelligent and Flexible space utility
• Satisfies high ceiling requirements with custom engineered panels up to 53 STC
• Simplifies setup and storage with the use of easy suspension system
• Accommodates wide variations in floor conditions
• Optimal for usage in conference, multi-purpose, hospitality and convention facilities
• Satisfies high ceiling requirements with custom engineered panels up to 50′ high
• Accommodates wide variations in floor conditions
• Simplifies setup and storage with the use of the suspension system
• Optimal for usage in conference, multi-purpose, hospitality and convention facilities, Creating extra revenue in Hotels, Conference Halls, Convention Centers by holding several smaller functions as well as large ones
• The most favoring advantage is it provides excellent high privacy, energy savings and at the same time aesthetically appealing flexibility (Layouts of the room can be changed as per the venue requirements) in the form of sound proofing.
