MDF Top Gypsum Board Sound Proofing Foldable Partition Wall Malaysia For Ballroom
MDF Top Gypsum Board Ballroom Sound Proofing Folding Partition Walls Malaysia
Folding partition walls details
The folding partition wall series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.
The vertical channel of each folding partition wall panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound insulation partition walls are available in three thicknesses, 65mm, 80mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).

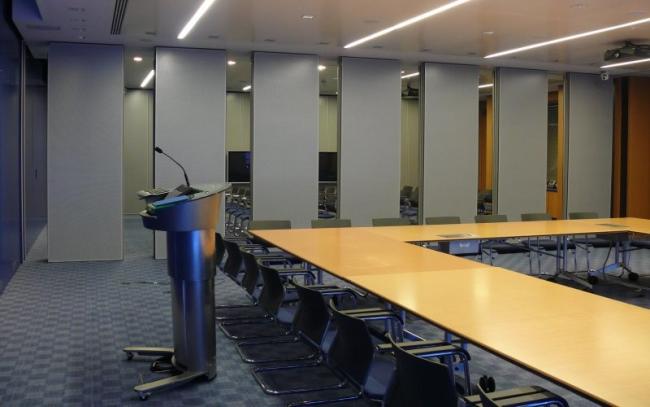

Folding partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of folding partition wall sound insulation system.
When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.
For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
Specifications of Folding Partition Walls System
| Item: | Acoustic room dividers with good sound proofing | ||
| Material: | Melamina, HPL, glass, etc. | Color: | optional |
| Port: | Shanghai, China | MOQ: | 10 square meters |
| Accessories: | Locks, hardwares, etc. | ||
| Package: | Cartons+wooden case with good protection | ||
| Characteristic: | Good quality hardwares, like, DORMA, Herrscher, etc. | ||
| The repeated utilization ratio of aluminum alloy profile could get to 90% above | |||
| Using PVC or rubber sealant to keep a compact work environment | |||
| All the machines and technology are from German | |||
| The special structure design does not only help to install easily and efficiently, but conduce to disassemble conveniently and replace the profile (type material), single or double glass | |||
| Delivery time: | 20-25 days after receiving deposit | ||
| Others: | Thousands of models for your choice, fully meet different customer demand | ||
| Different styles with different price, can control cost in the best way | |||
| We can provide the acoustic room dividers as your requirement | |||
5 reasons to choose us |
| 1. Fast delivery time due to fully automated production in Gemany quality |
| 2. Widest range of partitioning systems at the right price |
| 3. Tailor-made solutions available at short notice due to in office partition |
| 4. Perfect sound insulation and fire protection / sound proof and fire-resistant |
| 5. Consolidated company established in Germany offers professional advise |
Features of Folding Partition Walls
High specification ceiling track system;
Sound rating from Rw 30 to 50 dB;
Exposed protective edge or concealed profiles.
Individual plate is suspended from the top track.
Various stacking arrangements;
A telescopic seal locked between the track and the floor.
Access door is available for operable partitions.
The surface treatment may be used in hardwood veneer, vinyl, melamine, laminate or spray.
