Ballroom Acoustic Moveable Walls Folding Sliding Room Partition Walls

Specifications of Sliding Partition Walls System

Features of BUNGE Sliding Partition Walls System

1) Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter.

2) Top supported without floor track or guide.

3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side.

5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.

6) Available in wide range of finishes.

7) Fast delivery and Rich experiences in oversea project installation guide & supervision.

Details of Sliding Partition Walls

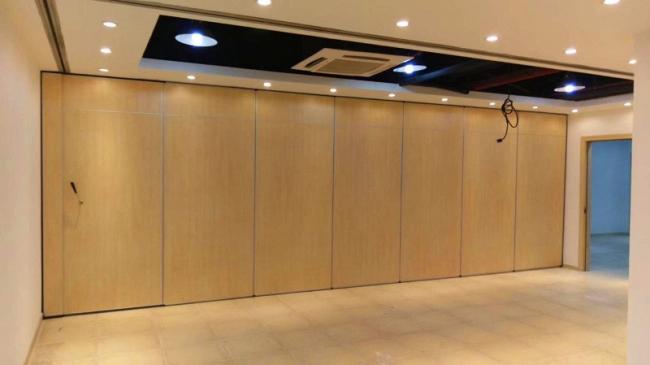

Sliding partition wall is also called movable partition wall. It can separate the space into several small spaces or turn several small spaces into big space ccording to your different need. Morever, it’s flexible sliding combination bring you a special experience.

1. Eight characters and functions:

(1) hang track on the ceiling, not the floor;

(2) heat insulation and fireproof

(3) stable and safe

(4) energy-efficientcy

(5) elegant appearance

(6) collection convenient

(7) widely used in different places

2. Usage:

Type 65 is suitable to use at 2m-3.5m height space.

Type 85 is suitable to use at 2m-6m height space.

Type 100 is suitable to use at 3m-9m height space.

3. Each panel load-bearing weight: 225kgs/ 450kgs/ 650kgs

4. Sound insulation coefficient:

Type 65 highest sound insulation coefficient can be reach is 36db.

Type 85 the highest sound insulation coefficient can be reach is 50db.

Type 100 the highest sound insulation coefficient can be reach is 53db.
