Soundproof Commercial Funiture Sliding Aluminium Track Movable Partition Acoustic Room Dividers


Description:

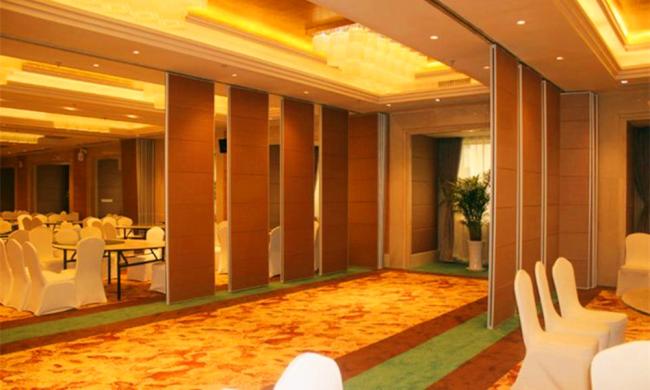

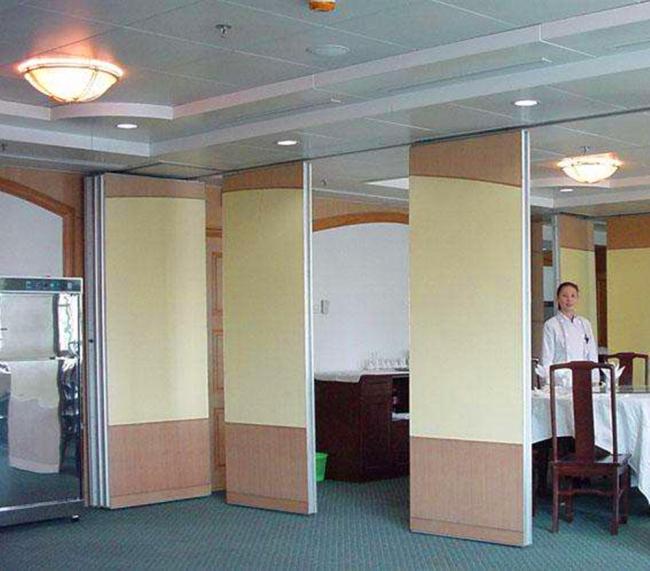

Movable partition wall also call can move partition, move partition, orbit partition. Mobile partition has the characteristics of easy installation, reusable, industrial production, fire protection and environmental protection.

Acoustic room divider brings great convenience to people's work, such as active screen, you are in need of it can be folded in the side, make two Spaces temporary joint and appear larger, convenient small temporary department meetings, some product  the landless rail system, have can completely reach the effect as solid wall.


Feature:


1. Floor less suspension: There is no track on the floor, just install the track on the ceiling;

2.Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3.Compartments environmental protection: the compartment effect is good, the maximum sound insulation coefficient up to 53db;

4.Insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, divide the large rating into small spaces to reduce air conditioning power consumption;


Surface:

1. The partition wall of the movable partition series consists of glass, melamine board, fire board, color steel plate, gypsum board and other decorative materials.

2.The main structure is made of aluminum alloy frame and steel with fire, moisture, noise, environmental protection, non-deformation and other functions, in the hotel partition layout, color and surface decoration, etc.

Installing details:

1. Before the renovation, the on-site measurement must be performed. According to the measurement data and the construction structure of the site, the design drawings shall be issued by the construction party, and the two parties shall confirm to enter the next step without any doubt.

2. Partition production is usually completed by a design company in its own factory. The installation engineering part is produced on site. Therefore, after confirming the design drawings, the requirements for glass thickness, materials, hardware accessories, and borders shall be analyzed and explained.




Technical information:


Structure:

The operable wall structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation.

When the operable folding wall system is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by 15 mm.

The carriages are installed on every second wall panel and are located at the center of the panel. Because the wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).
