Movable Acoustic Meeting Room Dividers , 2 Meter Height Sound Proof Partition Wall

Price Negotiable

Price: US Dollars $ 78 / 128 per square meter

MOQ: 10 square meters

Delivery Time: 10-25 days

Brand: BUNGE

Product Description

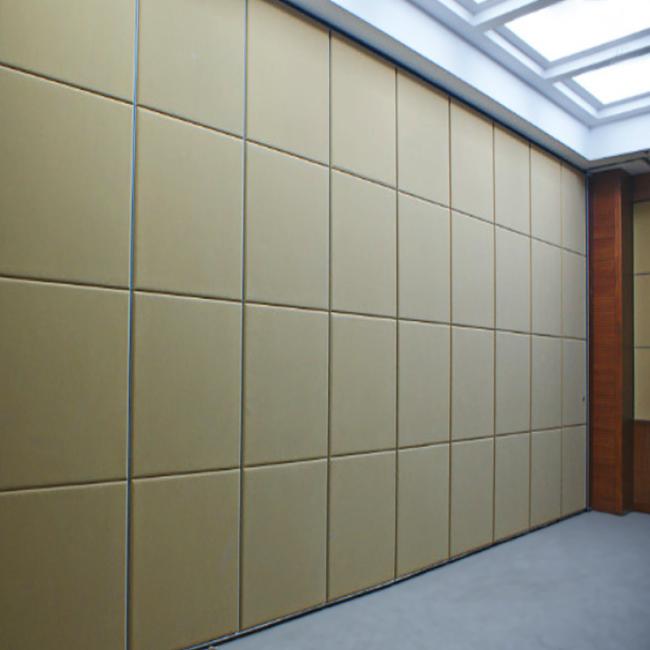

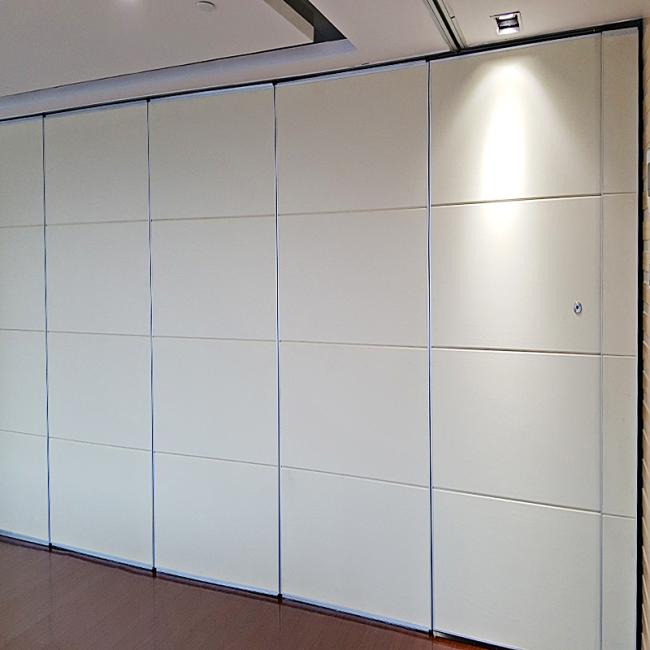

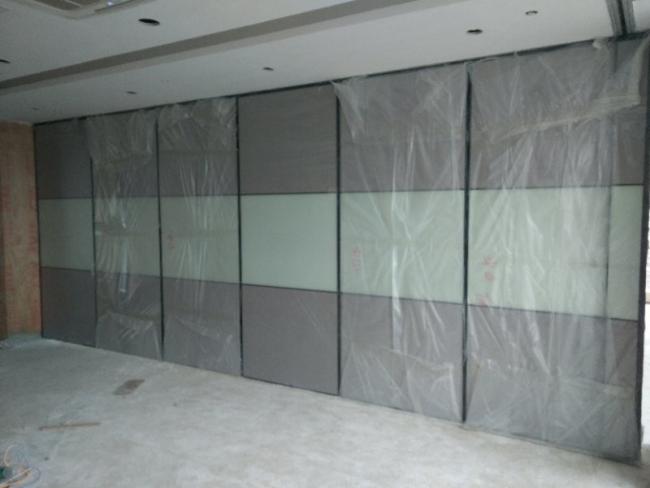

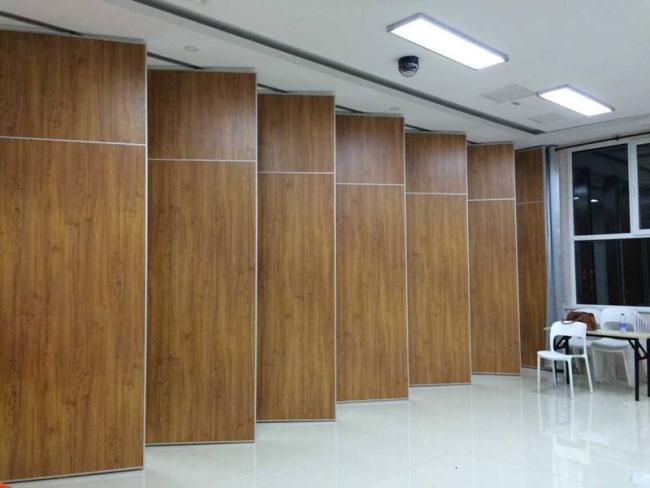

Movable Acoustic Meeting Room Dividers, Folding Room Dividers, Soundproof Room Dividers

Details of Acoustic Room Dividers

1)Movable acoustic room dividers,sound insulation from 32 dB to Rw 50 dB.

2)To ensure additional friction connection, shall be integrated with magnetic strip.

3)Acoustic room dividers are easy element adjustment after installation.

4)Track system for sound proof room dividers shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.

5)Acoustic room dividers surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

Bunge Movable Partition Products as follow:

1. Ordinary Type : 65, 85; 100;

2. High Sound Proof Type: 85, 100;

3. Heavy Duty Type : 100, 125SH;

4. Glass Type: 65 (Glass Clip); 65 & 85(Aluminium Frame).

We Offer:

◆ A full professional design service.

◆ Survery and installation guide.

◆ Using top quality materials and components.

◆ A fully experienced work team.

◆ Maintenance contracts to ensure your valuable asset remains in full work order.

Technical Information:

Series	BG65	BG80 / BG85	BG100 & BG125
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	32-38dB Rw	36-45dB Rw	42-55dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
