STC 32 - 53db Acoustic Sliding Partition Walls For Hotel Banquet Hall / Auditorium
Soundproof and Acoustic Sliding Partitions Walls for Hotel Banquet Hall
Details of Sliding Partition Walls
| Description of the whole system | |
| Item | Soundproof Movable partition |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-53db |
| Description of sliding partition walls accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |

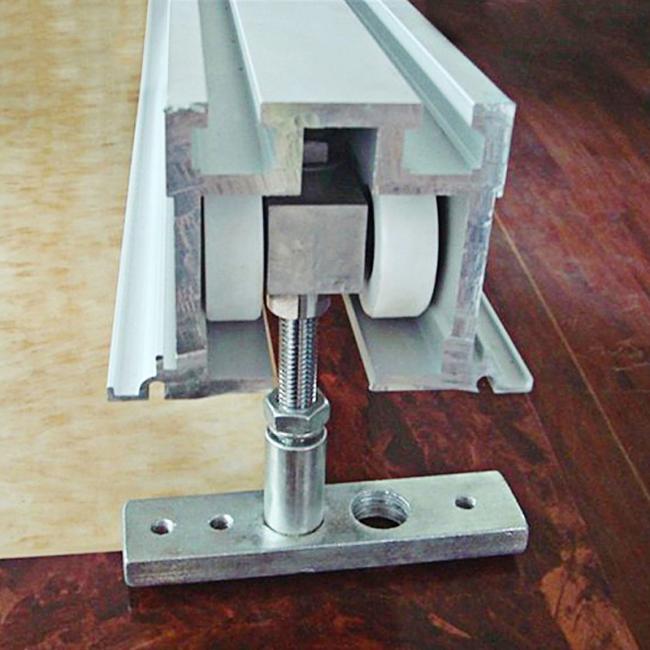

| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,melamine,HPL,fabric,PU,wood veer |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
| Glass wool density inside | 64kg/m3 |
| Interior profile | Wooden, aluminum, steel |
| Application | Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium |
About Us
The BUNGE company has a strong technical installation team and marketing team. The factory has introduced advanced foreign production technology, based on the advanced American partition technology, absorbs the essence of German and Danish partition technology, and continuously optimizes, improves and innovates to ensure products. It has excellent sound-absorbing and sound-absorbing effects, fire-retardant and flame-retardant properties, and at the same time absorbs professional technical talents. Through continuous innovation of technology, the products have better sound insulation effect and more flexible moving space function. There are 8 types of Ruizhuang movable partitions: 65 type, 85 type, 100 type, 125 ultra ultra high type and 65 type frameless glass, 85 type framed glass screen, and 32 type folding screen, among which the ultra high type movable partition With superior technical level, it adopts super-strong rails, imported hanging wheels, special-made barges and automatic steering system, with a height of up to 18m and a sound insulation coefficient of 55db. It is suitable for large-scale high-grade conference halls, banquet halls, exhibition halls. Exhibition halls and other professional venues.
Technical Information:
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance,Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels,exhubition halls,restaurants,multi-functional rooms etc. |
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Benefits:
1.Customized Size as your request.
2.MOQ is 100sqm.
3.Free small sample.
4.On line service by trade manager.skype or Mobile.
5.OEM & ODM are available.
6.Install Instruction.
