Top Hunge System Movable Room Partition For Hotel Banquet Hall / Acoustic Operable Walls

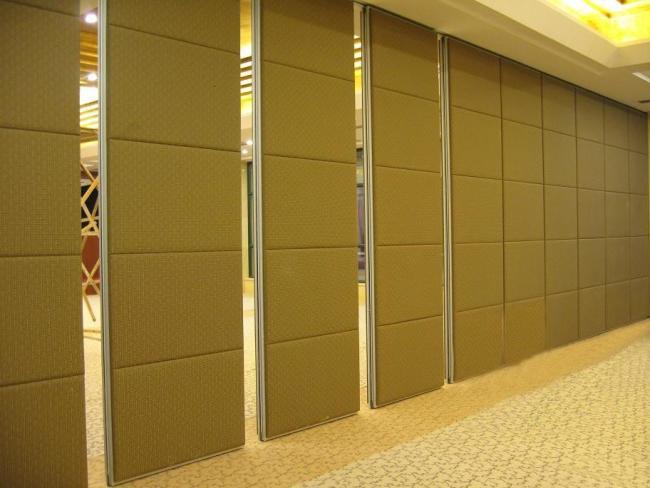

Hotel Banquet Hall Sound Proof Movable Partitions Acoustic Operable Walls
Acoustic Operable Walls Details
|
Panel Suspension
|
Top hunge system without the need for a floor track.
|
||
|
Panel Width
|
Each panel 600mm-1200mm.
|
||
|
Track
|
Aluminum OR Steel Track
|
||
|
Roller on panel
|
Single or Double Roller
|
||
|
Panel Frames
|
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
|
||
|
Top&bottm seals
|
Top and bottom pressure retractable seals ensure effortless moved and locked.
|
||
|
Module
|
700mm - 1200mm maximum.
|
||
|
Panel stacking
|
Numerous panel stacking options for complete flexibility.
|
||
|
Panel face
|
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
|
||
|
Finishes
|
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
|
||
Bunge Acoustic Operable Walls Systems-Technical Information
| Series | BG65 | BG80 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Acoustic Operable Walls Features
Acoustic operable walls are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.
Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Partition door mechanism structure
To create a better sound insulation acoustic operable walls, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand " Owens Corning" which is the best sound insulation cotton manufacturer.
