Soundproof Acoustic Partition Wall Thickness 65mm Movable Aluminium Frame
Movable Aluminium Frame Soundproof Material Acoustic Banquet Hall Wall Partition
Specification:

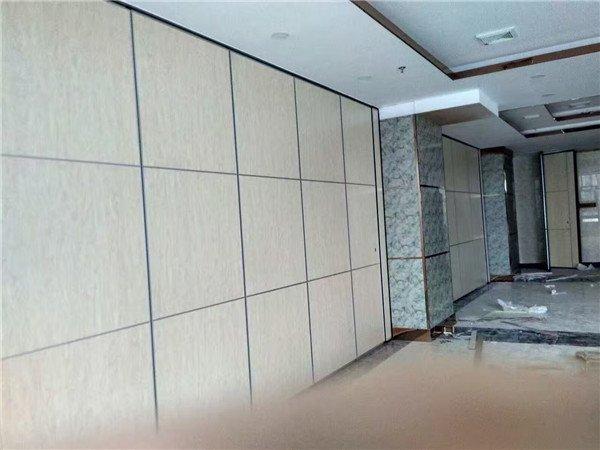

The acoustic wall partition is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The acoustic partition has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Feature:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Acoustic partition wall application:
Increasingly, flexible and efficient space utilization is becoming a must for offices, hotels, exhibition centers, studios and similar. Intelligent solutions are needed that facilitate multifunctional room and etc. You have at your disposal operable partition systems capable of harmoniously combining daylight-flooded and sound insulated room concepts.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Acoustic partition wall more details:
Rubber sealing materials plays an important role in modern sound insulation technology, especially in doors, windows, cars, etc.
Our sealing rubber materials made by high quality EPDM rubber, foam production process.
Have outstanding temperature resistance, optimum hardness and mechanical strength for long lasting sealing results, Ozone resistance, resistance to chemical corrosion properties.
We can offer:
1. Profession--We have professional sales staff. Any questions will be replied within 24 hours.
2. Price--Because we are factory , so we can provide higher quality and lower price products.
3 . Service--Easy and convenient to transport,we promise timely delivery date, and good after-sale service.
4. Team--We have our own engineering department, according to your request for your tailor-made for your product.
