Fireproof Wood Sound Absorption Folding Partition Walls For Shopping Arcades
Movable Fireproof Aluminum Frame Wood Sound Absorption Folding Partitions Wall For Hotel
Movable partition wall description:
Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails ,
and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall .

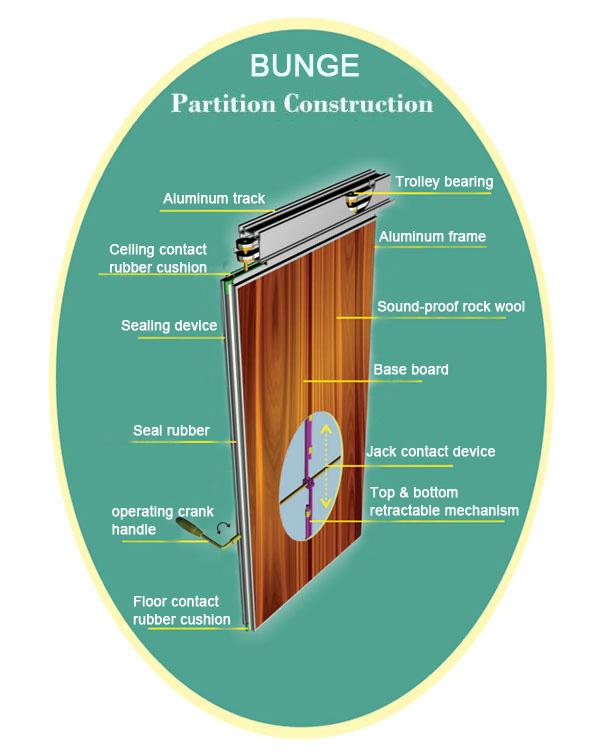

The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.
Retractable room dividers wide of range face finishes are available : melamine faced MDF or Plywood , fabric , carpet , fabric , artificial , leather , wood veneer , high pressure laminate , Formica , acoustic panel , white boad ect. , panels may also be supplied unfinished for field decoration , Standard frame color is clear anodized aluminum , custom powder coating colors are available.
Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation.
| Item | Movable Partition Wall | |||
| Material | Melamine , Glass , Fabric , MDF | |||
| Type | Tempered Glass Partition Wall | |||
| Acoustic Folding Partition | ||||
| Surface Finish | 1. MDF Base board with Melamine Finish | |||
| 2. MDF board with Fabric Or Leather Finish | ||||
| 3. Plywood Or MDF base board without any finish | ||||
| Size and Design | Customized | |||
| Opening Style | Folding | |||

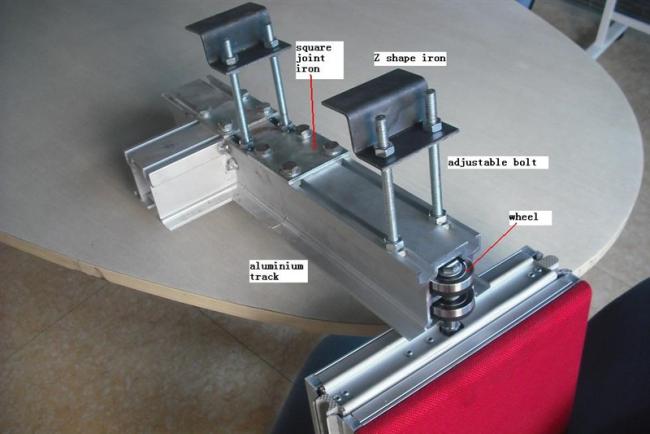

| Structure | Aluminum track , Trolley bearing , Acoustic Door Panel | |||
| Series | Thickness (mm) | Applied height (m) |
SoundInsulation(db) |
Referenced Weight |
| 65 | 65 | 2.0 ~ 4.0 | 32 - 36 | 30 kg / m2 |
| 80 | 80 | 3.0 ~ 6.0 | 35 - 45 | 35 kg / m2 |
| 100 | 100 | 5.0 ~ 8.0 | 43 - 53 | 45 kg / m2 |
| 125 | 125 | 7.2 ~ 13.0 | 53 - 60 | 65 kg / m2 |
| Package | 1. Inner : Vacuum soft plastic film | |||
| 2. Outer : Carton / strong chipboard | ||||
| Installation | Easy Installation , Provide the installation instruction | |||
| Application | Meeting room , dining hall , exhibition hall , Function room , office etc. | |||
| Delivery Time | 35 - 45 days after receiving the deposit and confirming the shop drawing | |||
| Advantages | 1.Good performance of sound insulation , thermal insulation and Fire prevention | |||
| 2.Save much space for your building | ||||
| 3. No tracks on the floor , it’s easy to install and remove | ||||
| 4.Beautiful appearance , it is widely used in many spaces , such as meeting room , dining hall , exhibition hall , Function room and office | ||||
| 5. We can add single or double doors on the board for convenience | ||||
| 6. Supplied our products for many projects all over the world |
||||
Product details:
