Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

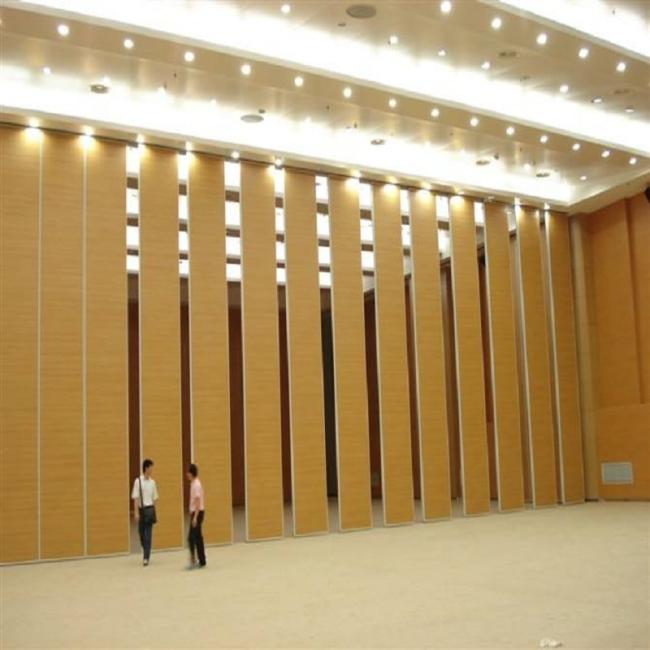

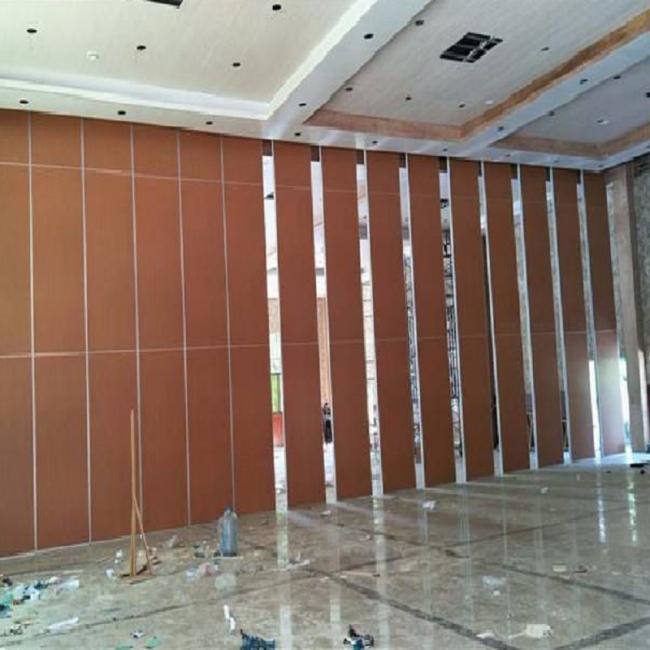

Finished project

Thanks for the trust from a Chichago Client. This project finished in April.

Application: Hotel banquet hall

Surface: Melamine + Fabric(Hard Cover)

Height: 3886 mm

Width:  21665 mm

Total amount: 84.2 square meters.



Sound proof partitions details

The sound proof partitions series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in sound proof partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.

The vertical channel of each sound proof partitions panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound proof partition walls are available in three thicknesses, 65mm, 85mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).

Sound proof partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of partition wall sound insulation system.

When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.

For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.


Technical information


Client Visiting
