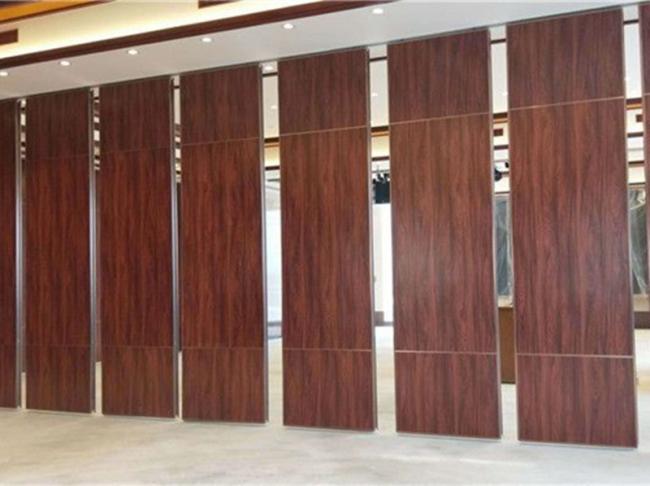

65 mm Sliding Track Operble Walls Banquet Hall Movable Folding Partition Wall

Specification:

Folding partition wall sound insulation from 32 dB to Rw 53 dB.

To ensure additional friction connection, shall be integrated with magnetic strip.

Movable wall partition are easy element adjustment after installation.

Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.

Restaurant partition wall surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

Structure:

The folding partition wall is generally composed of rails, sealing strips, horizontal wheels, reference surface materials, aluminium frames, soundproof materials, transmission rods, and sealing strips. The movable partition screen is not only used in hotels, but also in offices, homes, hotels, conference rooms, high-level clubs, golf course lounges, etc.

Feature:

1.Movable, interlocking panels suspended from an overhead track system.

2.Sound rated panels for effective noise control.

3.Available in paired (folding) and individual (omni-directional) configurations.

4.Can include access doors for easy entry and exit.

5.Blend with a room's aesthetics, similar to a permanent wall when extended.

6.Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.

Folding partition wall advantage:

Individual panels that can be stored away for Maximum space usage.

Operable top and bottom seals for effortless operation.

Aluminum frame construction for enhanced acoustics.

The system offers various levels of sound reduction.

Unique track and carrier system ensuring quiet and easy operation.

Numerous panel stacking options for complete flexibility.

Top hanging and no floor track.

Extensive range of surface finishes can be available.


Technical information:

Folding partition wall installing:

1. Before the installation of the movable partition, check the track on which the track parts are assembled on the floor in order;

2. Mark the track line and the mounting bracket at a specific location;

3. Install the movable partition rail bracket to the ceiling;

4. Check whether the movable partition is firmly fixed on the rail. When the rail and the bracket must be loosely stored in the storage area, the bracket plate can be moved to other places;

5.The appropriate position of the storage track is measured before the facility of the main track. This is very important for the placement of intersections in order to continue the installation of the following active partitions;
