Ballroom Acoustic Movable Partition Walls Banquet Hall Sliding Folding Partitions

Movable partition walls components

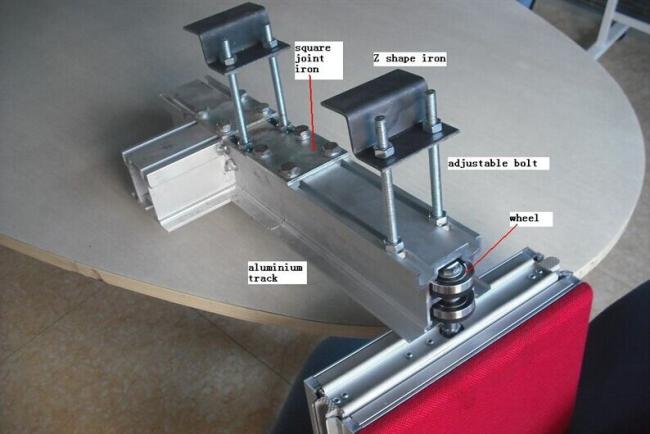

Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the classroom partition walls panels with wheels.

Wheels/Rollers:It is the carrier for the ballroom acoustic movable partition walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.

Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.

Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.

Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.

Handle:Operate the retractable being up and down.

Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.

Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the ballroom acoustic movable partitions.

MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.

Movable partition walls features

◆The ballroom acoustic movable partition walls are a hanging system,can be hidden upon drop ceiling, won’t see any tracks on the finish floor.

◆Easy to collect,all of the ballroom acoustic movable partition walls panels can be collected in a certain cabinet by one person quickly and conveniently, when a large space need to be recovered.

◆ The surface of the ballroom acoustic movable partition walls can be customized, can match the decoration style of the whole space.

◆Numerous panel stacking options for complete flexibility

◆The ballroom acoustic movable partition walls are sound proofing,can up to various levels of sound reduction.

◆The ballroom acoustic movable partition walls are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.

Technical information

Movable partition walls application

BUNGE ballroom acoustic movable partition walls can be used in Convention Centers,Conference Room,Religious Facilities,Hotels,Auditoriums,Corporate Training Facilities,Office,Civic or Exposition Halls,Schools, Banquet Halls,Ballroom,Meeting Rooms etc.

With ballroom acoustic movable partition walls systems,there are no more barriers to maximizing the potential of your available building spaces.
