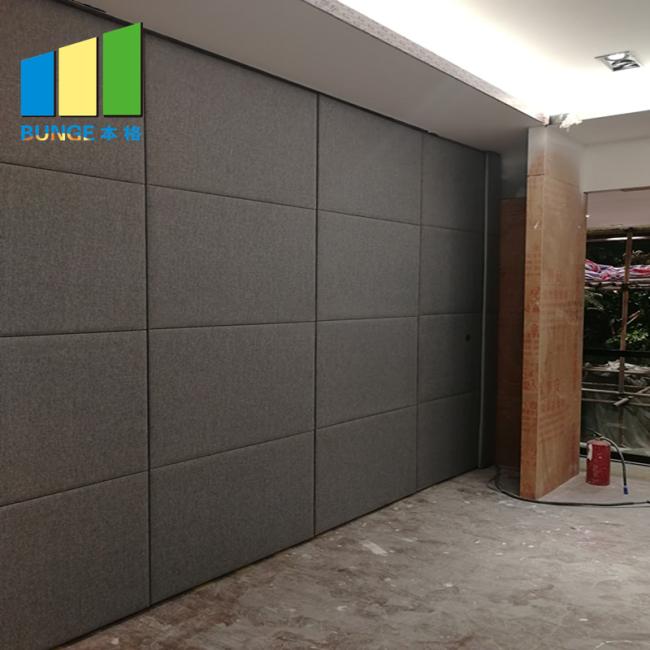

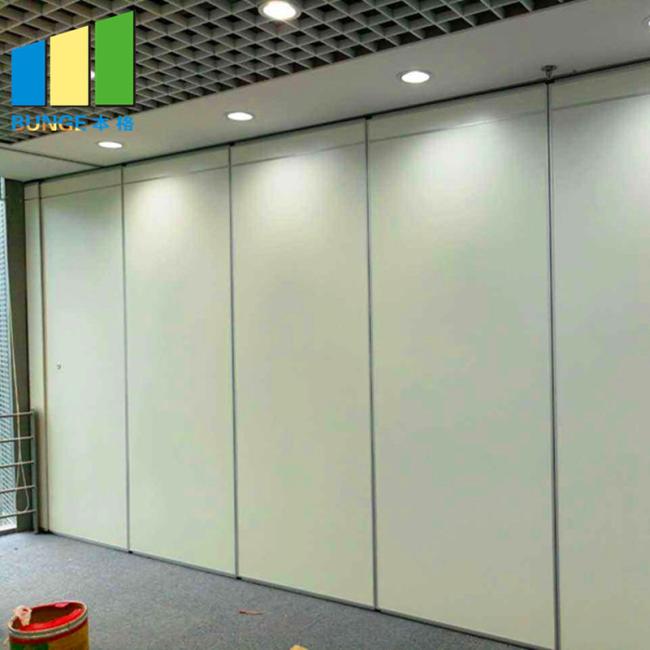

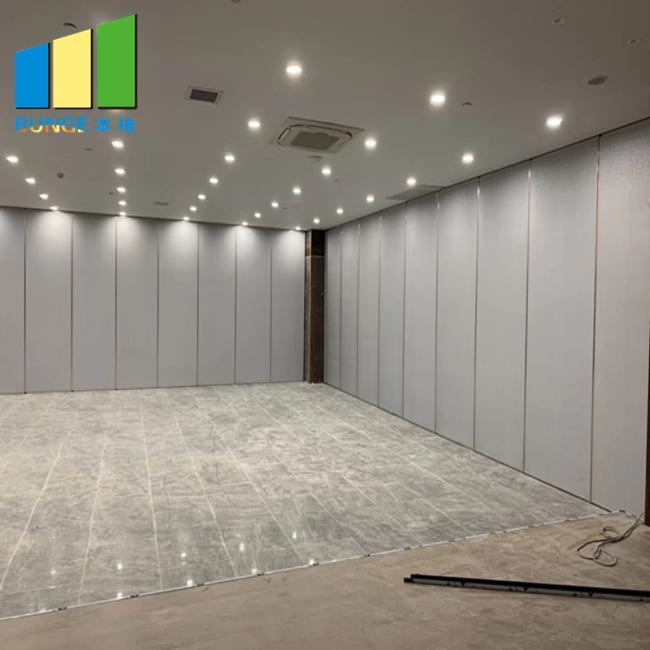

Aluminum Moveable Door Partitions Acoustic Partition Walls For Conference Hall
Aluminum Moveable Door Partitions Acoustic Partition Walls for Conference Hall
Moveable acoustic partitions details
1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.
2-Top supported without floor track or guide, only have track on the ceiling.
3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4- Sound insulation certificate :STC 32db to 52db, ASTM standard of acoustic rate.
5- Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.
6- Fast delivery and Rich experiences in oversea project installation guide & supervision.
Technical Information
| Description of the whole system | |
| Item | Moveable acoustic partitions systems |
| Partition Height | 2-17 meters |
| Sound Transmission Class(STC) | 32-55db |
| Description of accessories | |
| Roller | Imported dupont POM material roller,bearing capacity 225-1300kg |
| Track System | Clear anodized 6063-T6 aluminum double track |
| Surface finish option | MDF,plywood, melamine,HPL,fabric,PU,wood veer, mirror steel ect. |
| Junction | "T"junction, "L" juntion, cross/ "X" juntion |
| Product name | Moveable acoustic partitions | ||
| Material | Melamine+MDF board, or MDF board+acoustic panel, or plaster board+acoustic panel, or magnesium+acoustic board, or sound insulation board+acoustic board. | ||
| Finish | Anti-fire fabric, anti-fire leather, melamine, fabric acoustic panel. | ||
| Thickness | 65mm, 85mm, 100mm | ||
| Width | 800-1200mm | ||
| Max height | 4500mm | ||
| Acoustic reduction coefficient | 30-45 dB | ||
| Hermetic bar flex distance | 46-60mm | ||
| Weight | 18-35 kg/m2 | ||
| Environmental | E1 grade | ||
| Application | Exhibition hall, international conference center, any places where need to be separated and full used easily. | ||
Moveable acoustic partitions features
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Compartment environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the hall is divided into small spaces to reduce air conditioning power consumption;
5. Efficient fire prevention: the moveable acoustic partition is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the moveable acoustic partitions surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7. Retractable and flexible: the moveable acoustic partition is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the moveable acoustic partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: products used in hotels, hotels, restaurants, conference halls, exhibition halls, high clean factories and offices.
