Convention Center Soundproof Partition Doors Folding Room Partition For Meeting Room
Convention Center Soundproof Partition Doors Folding Room Partition for Meeting Room
Soundproof partition doors details:
The soundproof partition doors we supply and install here can allow 2 rooms to become one large area, with a straight forward folding screen.
Where floor area is at a premium, one large meeting room can be sub-divided into 3 smaller rooms for normal use, but when a full team meeting is required, the 2 dividers can be pulled back to give room for everyone.
Easy to operate, with powered operation available if you prefer, the walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Soundproof partition doors can be top hung or bottom rolling, to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
A range of panel finishes allows you to be sympathetic to your surroundings, from Melamines, to Veneers, to writable wall panels.
We pride ourselves on our professional, efficient services, delivering projects on time and within budget throughout Sheffield. For further information about any of our quality products or services, don’t hesitate to get in touch with our friendly team today.
Technical Information
| Model | 65 temporary soundproof partition doors |
85 temporary soundproof partition doors |
100 temporary soundproof partition doors |
Ultrahigh temporary soundproof partition doors |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |

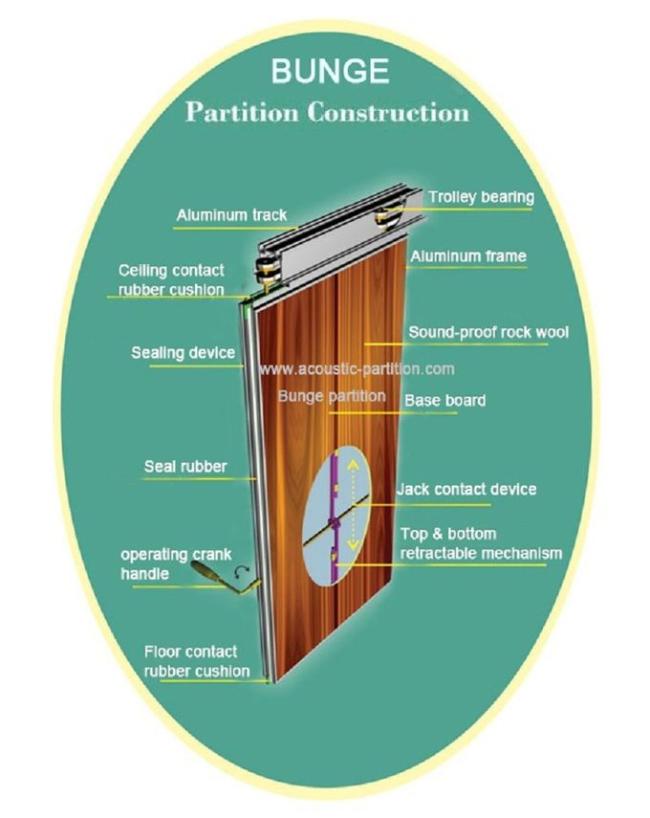

Soundproof partition doors installation
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the soundproof partition doors panels with wheels.
Wheels/Rollers:It is the carrier for the soundproof partition doors,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the partition walls prices.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
