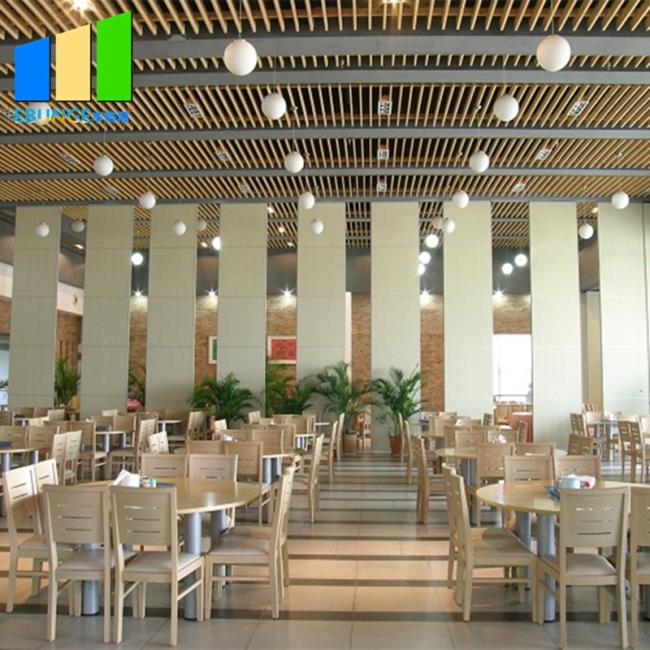

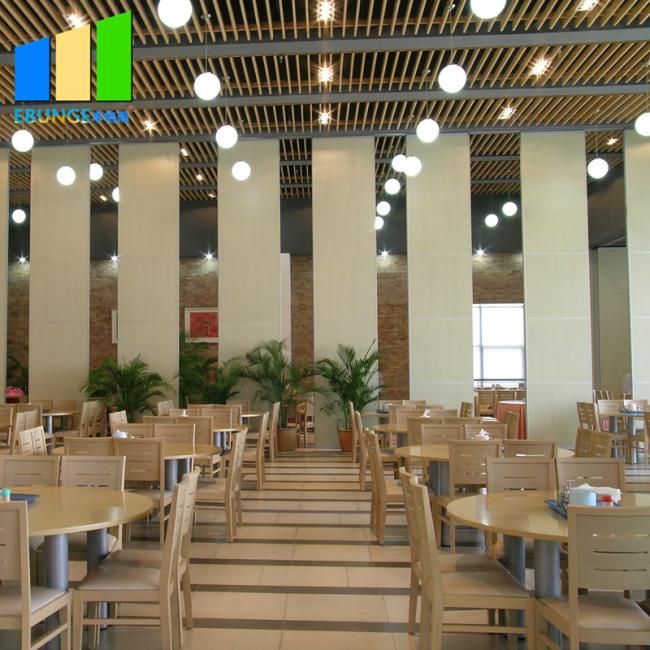

Wooden 85mm Thickness Folding Partition Walls Melamine Finish Hanging System For Restaurant
Wooden 85mm thickness folding partition walls melamine finish hanging system for restaurant
Bunge sliding partition wall is made of high quality anodized aluminum frame with environmentally composite materials.The panels move on a ceiling track with no requirement of floor guides or rails,and they have a standard thickness of 65 mm,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 13 meter tall.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Track system:
The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23 mm.
Feature:
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.
Technical reliability
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Surface
Melamine,plywood,acoustic fabric and leather
Framework (stylist)
Aluminium profiles that become totally invisible when flat by means of a hollow joint system.
