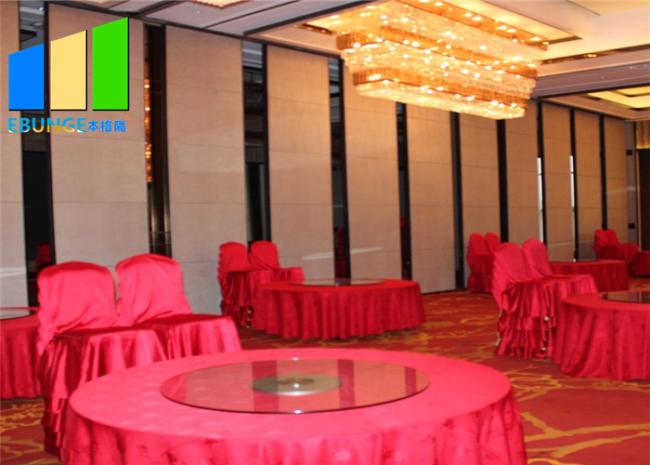

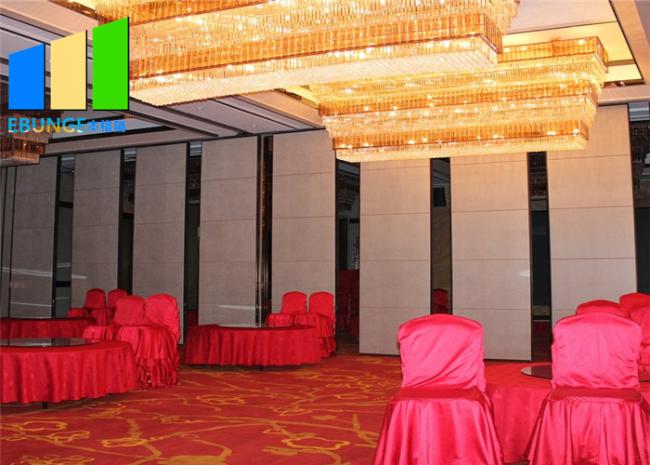

United State Acoustic Sliding Door Operable Foldable Partition Wall
United State Acoustic Sliding Door Operable Foldable Partition Wall
How to operate the foldable partition walls?
1 .Be certain to retract the top and bottom before moving panel or damage may occur.
2. Not for outdoor using, put the the foldable partition wall panel stay away from and water or moisture area.
3. Take care of the foldable partition wall panel finishing during installation or operating and the fabric and leather fabric is not easy to clean spotted or damaged.
4. The foldable partitions only operated by the trained personnel.
5. Operate slowly and never force the partition panel.
6. Slowly turning every time at the “T” and “L” corner track.
7. If get stuck or not smooth and “T or “L: corner track, turn back to push again.
Technical Information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
How to maintain and repair the foldable partition walls?
Conduct all operations slowly. Safe operation requires moving panels into place one at a time. Avoid stopping while moving the panels through intersections. The carriers may stop in an intersection and appear stuck. If this happens, push panel back in the direction from which it came and try again.
For the best acoustical seal and proper alignment, it is important to maintain constant pressure against the edge of the panel while setting seals.
If you notice that a foldable partition wall is not hanging plumb, stop and go back and reset the panel. If you fail to do this, panels will not make full contact and provide a poor acoustic seal.
The foldable partition walls consists of seal panel (SP), basic panel(BP), an optional pass door,(PD), additional basic panels(BP), and telescopic panel(TP). Stand in the center of the panel face. Using both hands, grasp it by the edges as high as possible and gently pull it toward you. (exp.a) Carefully maneuver the panel out of the storage area. Move the foldable partition wall panel down the track to the required position. Once in place, push it firmly against the adjacent wall or panel to insure a tight joint. You may place your foot against the bottom of the panel to hold it in place while you extend the acoustical seals.
