Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls
Sri Lanka Hotel Sound Proof Folding And Sliding Door Partition Walls
Sliding Door Partitions Features
The sliding door partitions we supply and install here can allow 2 rooms to become one large area, with a straight forward folding screen.
Where floor area is at a premium, one large meeting room can be sub-divided into 3 smaller rooms for normal use, but when a full team meeting is required, the 2 dividers can be pulled back to give room for everyone.
Easy to operate, with powered operation available if you prefer, the sliding door partitions can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Sliding door partitions can be top hung or bottom rolling, to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
A range of panel finishes allows you to be sympathetic to your surroundings, from Melamines, to Veneers, to writable wall panels.
We pride ourselves on our professional, efficient services, delivering projects on time and within budget.
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 17000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Surface material | 9mm | 9mm | 12mm |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 22-32 dB Rw | 28-40 dB Rw | 40-55 dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |

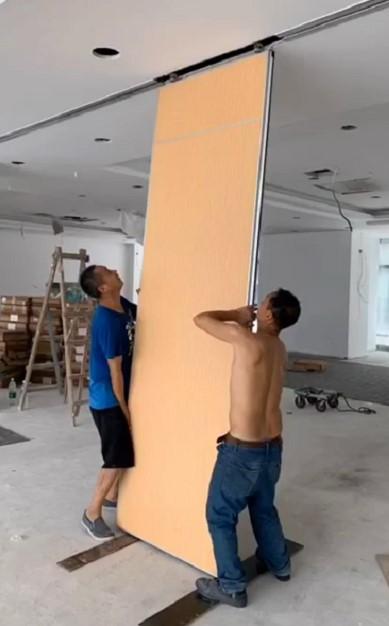

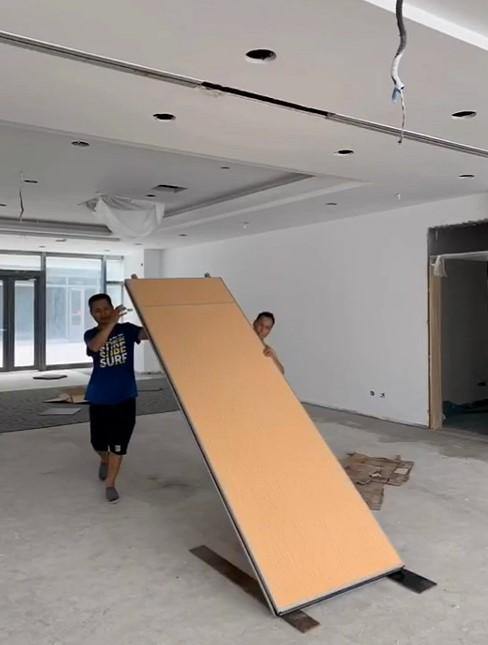

Sliding Door Partition Installation
The end of the door body with wheels is facing up, and the door body is aligned with the movable opening and slowly lifted up.
The door body wheel enters the position of the movable opening, and the door body is aligned vertically with the track. The front end is gently lifted to make the wheels enter the track. When the rear wheel touches the edge of the track, gently lift up to make the rear wheel enter the track.
Reinstall the movable opening, tighten the fixing screws, and fine-tune the door with inconsistent height according to the overall height.
