Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
Within 30 days after confirmation for HSZ-K type Chain Block 30T
Brand:
SEAGULL or OEM pointed brand
Product Description

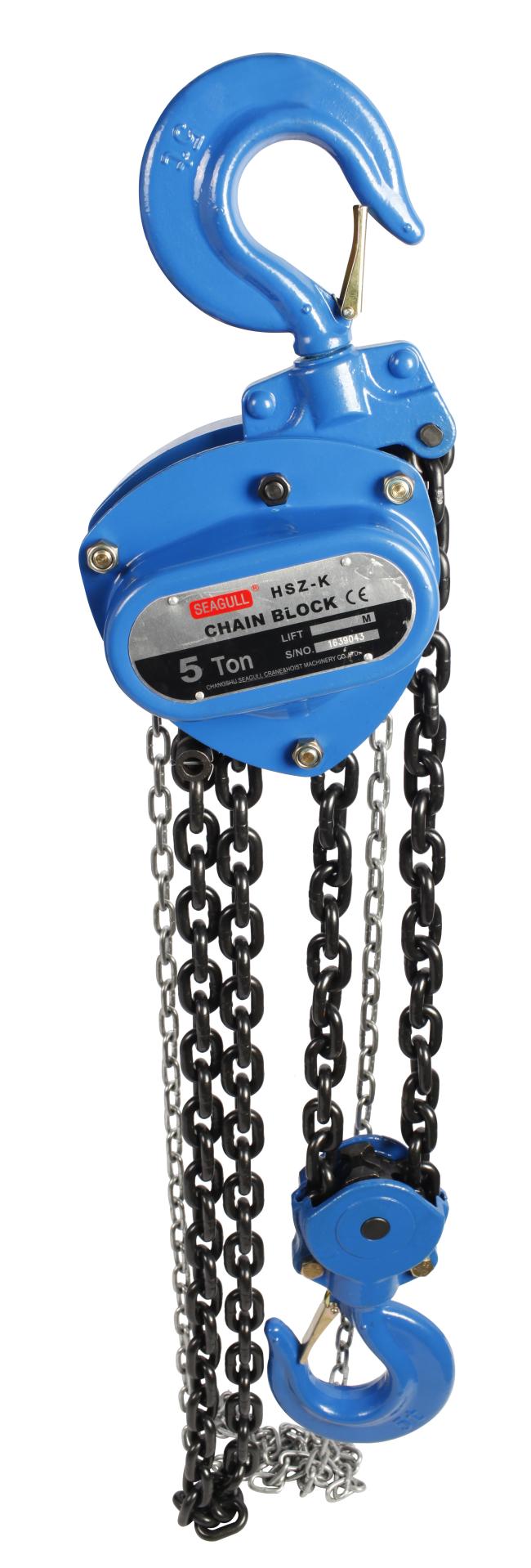

Most Popular 5 ton 6 m Chain Pulley Block Manual Chain Block Chain Hoist
(1) Have certificate of CE
(2) Got certificate of ISO9001
(3) Capacity from 0.25T to 50T
(4) Automatic double-pawl braking system
(5) More thickness of sheet cover,gear cover and side plates for good quality.
(6) Asbests-free brake discs
(7) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.
(8) Drop forged hooks and hook holders to ensure superior quallity and safety.
| HSZ-K CHAIN BLOCKS 0.5Ton-30Ton | |||||||||
| Model | HAS-0.5K | HSZ-1K | HSZ-1.5K | HSZ-2K | HSZ-3K | HSZ-5K | HSZ-10K | HSZ-20K | HSZ-30K |
| Rated load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 37.5 |
| Efforts required at capacity(N) | 262 | 324 | 395 | 330 | 402 | 430 | 438 | 438 | 442 |
| Diameter of load chain(mm) | 5 | 6 | 7.1 | 6 | 7.1 | 10 | 10 | 10 | 10 |
| No. of load chains | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 10 |
| Dimensions (mm) A B C D |
120 116 285 28 |
147 136 332 32 |
181 147 410 38 |
158 136 470 40 |
202 148 550 44 |
228 178 640 50 |
373 178 737 64 |
638 195 1022 82 |
703 397 1050 82 |
| Net weight (kg) | 7 | 10 | 15 | 17 | 23 | 38 | 68 | 160 | 235 |
| Extra weight per meter of extra lift(kg) | 1.5 | 1.8 | 2 | 2.7 | 3.2 | 5.3 | 9.8 | 19.6 | 23.9 |
ensions (mm) A
B
C
Extra weight
