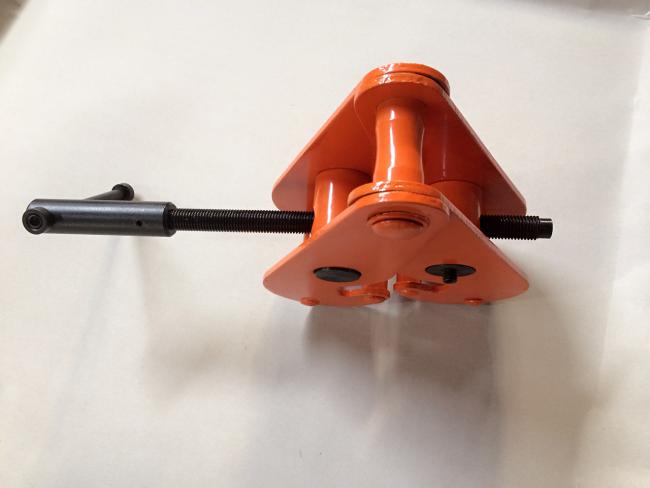

Seagull JT Lifting Steel Beam Clamp 75 - 220mm Lift Clamps 2 Ton Working Load
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
30 working days after confirm PO
Brand:
SEAGULL
Product Description
seagull JT Lifting Steel Beam Clamp 75-220 mm adjustable beam 2 ton working load
Product Description
1. High quality alloy steel with low carbon.
2. Load range:1-10t
3. Safey factor:1.5 times working load limit
4. With safe and secure grip on the beam.
5. Easy and simple to install.
6. Beam width range: available in various styles.
7. Forbidden overload.
Technical Parameters
| SAFT WORKING LOAD (t) |
ADJUSTABLE BEAM (mm) |
A | B | C | D | E | F | G | H | NET WEIGHT (kg) |
||
| MAX | MIN | MAX | MIN | MAX | ||||||||
| 1 | 75-220 | 260 | 180 | 360 | 64 | 5 | 215 | 102 | 155 | 25 | 22 | 4.5 |
| 2 | 75-220 | 260 | 180 | 360 | 74 | 6 | 215 | 102 | 155 | 25 | 22 | 5.2 |
| 3 | 80-320 | 354 | 235 | 490 | 103 | 8 | 260 | 140 | 225 | 45 | 24 | 10 |
| 5 | 80-320 | 354 | 235 | 490 | 110 | 10 | 260 | 140 | 225 | 45 | 28 | 11.1 |
| 10 | 90-320 | 365 | 320 | 505 | 120 | 12 | 280 | 170 | 235 | 50 | 40 | 20 |
Application
Applicable to construction, industrial, commercial, vertical lifting work
Advantages
- Heavy duty construction
- Compact size
- Low headroom design
- Portable
- Simple to install
- Clamp jaw design applies load away flange edge.
- Quick and easy adjustments
- Fits wide flange beams
Product instructions
Ensure that the beam is positioned over the centre of gravity of the hoisted load. And ensure that the load is not swinging or at an angle to the beam clamp. As this can cause serious injury and impose health and safety risks.
