Flat Plate Soft or Hard Plastic Automatic Vacuum Packing Machine for Food
Flat Plate Soft or Hard Plastic Automatic Vacuum Packing Machine for Food
Specifications
|
Package Application: |
Suitable for packing many sensitive anti-pollution materials and medical apparatus and instruments, Chinese and western medicine, electron, chemical product and foodstuff. |
|
Package Materials: |
Paper-plastic, Aluminum-plastic, Plastic-plastic and other Compound Film suitable for heat sealing(or the hard plastic less than 0.2mm), width of upper film is 393mm and the lower is 422 mm. |
|
Maximum inner forming dimension(mm) |
370*370*50(L*W*D)(standard machine)Also can do larger dimensions. |
|
Vacuum Rate |
≤200Pa |
|
Air compression |
≥0.5Mpa-0.7Mpa 0.3m3/min |
|
Cooling water |
≥0.15Mpa |
|
Power |
380v/220v 50HZ 12kw (It’s depend on customer’s requirements) |
|
Overall dimension(mm) |
5300*950*1860(L*W*H) |
|
Weight(kg) |
1800kg |
Description
- Adopting servo motor and chain clipping pulling system with function of pulling length adjustable.
- It is equipped with Prints Registering System for ensuring the prints are on the correct package position
- The position of printing and embossing are freely adjustable.
- Mould located by male pin, convenience of changing mould.
Applications

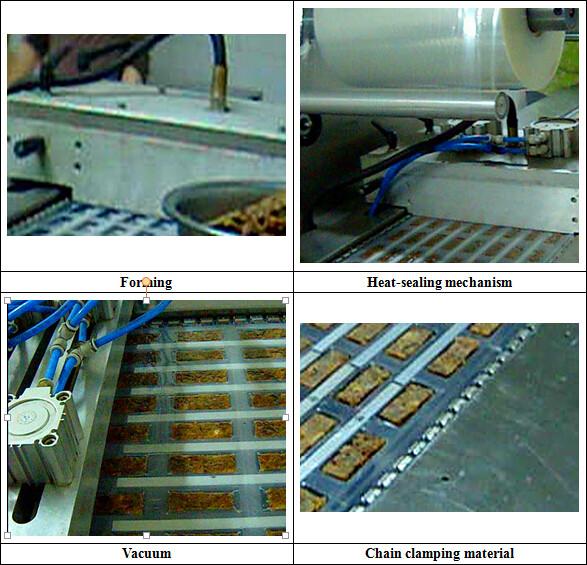

The machine is suitable for packing different types of medical equipments includes injector, syringe and bandage in to PVC/Paper or Soft Plastic with vacuum package. It runs continuously for PE film or other plastic film automatically heating, forming, material feeding, prints registering, sealing, embossing, vertical and cross cutting and finished product output with PLC Controlled system and Servo motor pulling system.
