Powder / Pellet Semi Auto Capsule Filling Machine , Industrial Filling Equipment
Powder / Pellet New Semi Auto Capsule Filling Machine , Industrial Filling Equipment
Applications
The product is a special capsule filling machine which is suitable for medium & small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system(PLC), touch screen operation, step-less transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the complete operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.
Main technical data
|
Capsule size |
No. 00#-5# & Security Capsule A-E |
|
Capacity |
Max. 18,000 pcs/h |
|
Power supply |
380V 50HZ 2.2KW |
|
Vacuum pump |
XD-040(40m3/h) |
|
Capacity of air compressor |
0.1 m3/min |
|
Noise |
<60dB(A) |
|
Overall dimensions:(mm) |
1350×700×1600 |
|
Packing dimension:(mm) |
1800×800×1800 |
|
Net weight:(Kg) |
330 |
|
Gross weight:(Kg) |
400 |
Advantages
- It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.
- It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
- The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.

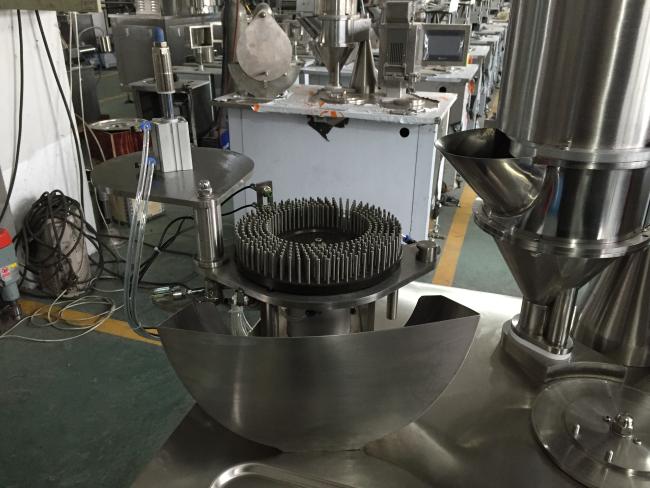

Work shop
ELECTRIC CONFIGURATION
|
380V 50Hz 3Pharse 4wires
|
||||
| Name | Model | Brand | Qua | Remark |
| Single pole rotary vane vacuum pump | XD-040 |
Shanghai Fu Yu
|
1 | |
| three phase asynchronous motor | Y263M2-4 | DA SU | 2 | |
| Three phase vertical gear reduction motor | TJH400W-7.5:1 | TAI JIE | 1 |
Silent type
|
| Frequency converter | DVM-2S004G-02 | Delisle | 3 | |
| PLC | DVD32ES200T | DELTA | 1 | |
| Touch screen | MT6070iH | Weinview | 1 | |
| Worm gear reducer (double out axis) | NMRV50-15:1-63B5 | DING ZU | 1 | |
| transformer | JBK3-63 | RUI AN | 1 | |
| intermediate relay | JIX-2C | OMRON | 2 | |
| AC relay | CJX2-12 |
Schneider
|
2 | |
| Breaker | DZ47-63 D20 |
Schneider
|
1 | |
| Breaker | DZ47-63 C6 |
Schneider
|
1 | |
| Emergency stop switch | Y090-11X | CHINT | 1 | |
| Filling cylinder | SC50X125 | Adyk | 1 | |
| Lock cylinder | MAL100X80 | Adyk | 1 | |
|
Air filter pressure regulating valve
|
AL-2000 | Adyk | 1 | |
|
photoswitc
|
GL-8F | JAPAN | 1 | |
|
proximity switch
|
H12-D5NK | RUI XIANG | 1 | |
