Automatic Liquid Honey Jam Chocolate Blister Packaging Machines Food Filling Machines

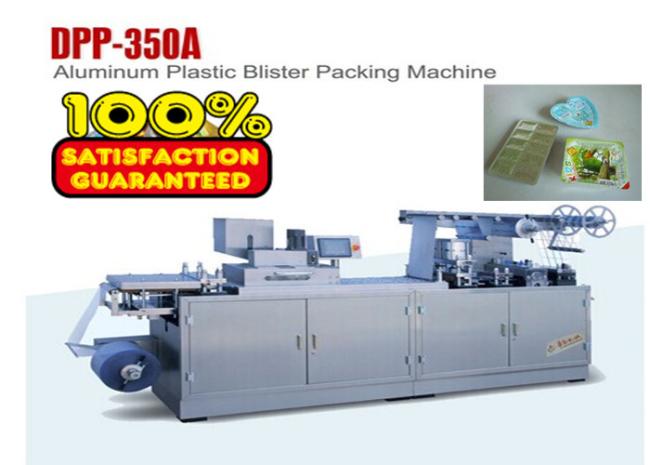

DPP series blister packing machine suit for packing capsule, tablet, penicillin bottle, oral liquid, candy
irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health products, light industries package.
Travel scope can be adjusted.
The material is fed automatically.
Speed is shifted by step-less transducer.
Stepping Or Servo motor Pulling Material more accuracy and easy adjusting
Quick Detail:
|
Item Model |
DPP-350A |
DPP-250A |
DPP-140A |
|
|
Cutting Frequency(ideal sizes:80*57mm) |
15-45 cutting/min |
15-45 cutting/min |
15-45 cutting/min |
|
|
Max. Forming Area and Depth |
240×130×15 |
250×120×15 |
140×110×15 |
|
|
Adjustable Scope of Travel(mm) |
30-140mm |
30-130mm |
30-120mm |
|
|
Packaging material (I.D.Φ75) |
PVC(mm) |
(0.15-0.6)×350×(Φ400) |
(0.15-0.4)×260×(Φ400) |
(0.15-0.4)×160×(Φ350) |
|
PTP(mm) |
(0.02-0.15)×350×(Φ400) |
(0.02-0.15)×260×(Φ400) |
(0.02-0.15)×160×(Φ350) |
|
|
Paper(mm) |
(50-100)gsm ×350×(Φ400) |
(50-100)gsm ×260×(Φ400) |
(50-100)gsm ×160×(Φ350) |
|
|
Power |
380V 50Hz 9.5kw |
380V 50Hz 8kw |
380V 50Hz 5.5k |
|
|
Air compression(self-prepared) |
0.6-0.8Mpa≥0.6m³/min |
0.6-0.8Mpa≥0.45m³/min |
0.6-0.8Mpa≥0.4m³/min |
|
|
Recycle water or circulating water consumption |
60-100L/h |
40-80L/h |
40-80L/h |
|
|
Overall Dimension(L*W*H)(including foundation) |
3650×850×1700 |
2900×750×1600 |
2400×650×1450 |
|
|
Dimension of Each Part |
1850×850×1700(front) |
1500×750×1600(front) |
1350×650×1250(front) |
|
|
1800×850×1650(back) |
1400×750×1450(back) |
1050×650×1450(back) |
||
|
Weight |
About 2000kg |
About 1200kg |
About 800kg |
|
Performance and Characteristic
Mould is located by locating groove which makes it easy to change mould.
The machine heats the PVC through conduction and forms it through pressing and frothing.
The mould and feeder can be designed as user’s requirements.
Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
