New Semi-automatic Capsule Filling equipment with PLC control
New Semi-automatic Capsule Filling Equipment with PLC control
Application
It is a special capsule filling machine which is suitable for capsule filling with powder or granules.
It is suitable for medium & small pharmaceutical factory,,hospital preparation lab.etc.
General Description

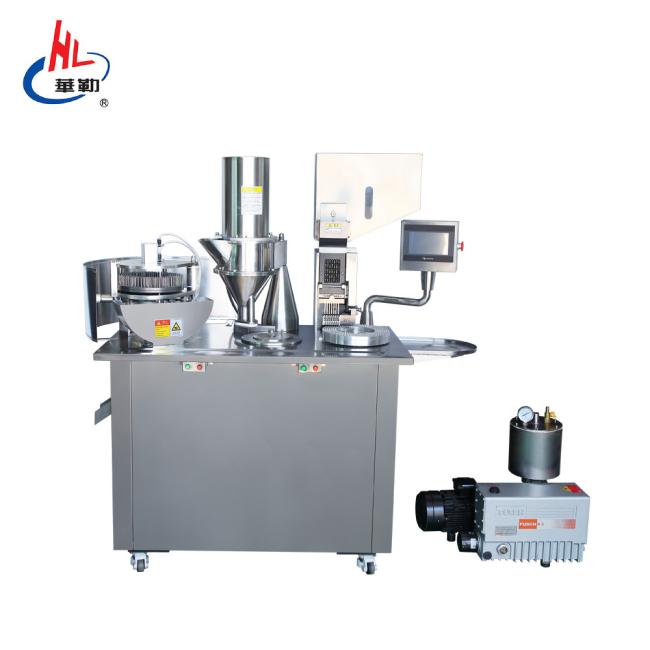

The DTJ-V Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
Main parameters
| Capsule size | No. 000#-5# |
| Capacity(capsules/h) | 10000-22500((Depending on the operation of skilled workers) |
| Power supply | 380V 3Pharse 4.0kw |
| Vacuum pump | 40m3/h |
| Capacity of air compressor(is not included, prepared by customers) | 0.03m3/min 0.7Mpa |
| Overall dimensions:(mm) | 1140×700×1630 |
| Packing dimension:(mm) | 1650×800×1750 |
| Net weight:(Kg) | 430 |
| Gross weight:(Kg) | 500 |
