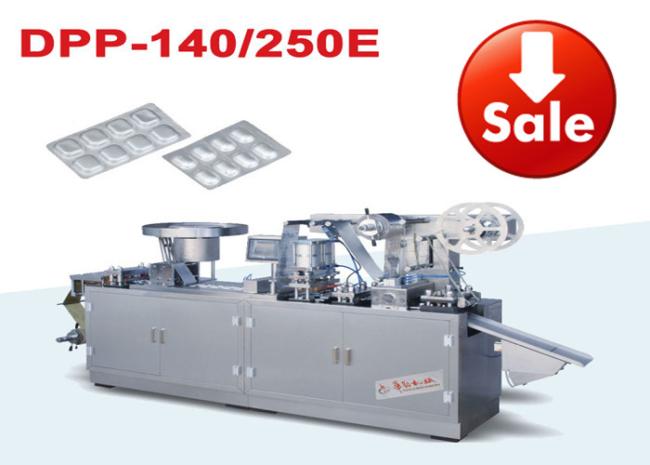

High Sealable Cold Aluminum Foil Pharmaceutical Packaging Machinery Automatic
High Sealable Cold Aluminum Foil Pharmaceutical Packaging Machinery Automatic
Machine Introduction:
The machine combine with two functions, it can be used as Aluminum Aluminum blister packing machine and Aluminum plastic blister packing machine by changing moulds.
140E Specifications
|
Model |
ALU ALU |
ALU-PVC |
|
|
Machine Body |
Stainless Steel 304/316 |
||
|
Blanking frequency(times/min) |
15-30 |
20-45 |
|
|
Adjustable pulling length |
30-120mm |
||
|
Blister Plate Size |
Design According To Customers’ Requirements |
||
|
Max Forming area and depth(mm) |
140*110*12 |
140*110*15 |
|
|
Air compressor(self-prepared) |
0.6-0.8Mpa ≥0.4m3/min |
||
|
Mould cooling |
(Recycle water or circulating water consumption) 40-80 L/h |
||
|
Power supply(Three phase) |
380V/220V 50HZ 3KW
|
380V/220V 50HZ 5.5KW
|
|
|
Wrapper specification (mm) |
Alu Alu Foil 150*(0.14-0.18)*(Φ400) |
PVC 150*(0.15-0.4)*(Φ400) |
|
|
Aluminum Foil:150*(0.02-0.15)*(Φ400) |
|||
|
Overall Dimension(L*W*H) (including foundation) |
2400*650*1450 |
||
|
Dimension of Each Part |
1350*650*1250(front) |
||
|
1050*650*1450(back) |
|||
|
Weight |
About 800kg |
||
250E Specifications
|
Model |
ALU ALU |
ALU-PVC |
|
|
Machine Body |
Stainless Steel 304/316 |
||
|
Blanking frequency(times/min) |
15-30 |
20-45 |
|
|
Adjustable pulling length |
30-120mm |
||
|
Max Forming area and depth(mm) |
250*120*12 |
250*110*15 |
|
|
Air compressor(self-prepared) |
0.6-0.8Mpa ≥0.45m3/min |
||
|
Mould cooling |
(Recycle water or circulating water consumption) 40-80 L/h |
||
|
Power supply(Three phase) |
380V/220V 50HZ 4.5KW |
380V/220V 50HZ 8KW |
|
|
Wrapper specification (mm) |
Alu Alu Foil 260*(0.14-0.18)*(Φ400) |
PVC 260*(0.15-0.4)*(Φ400) |
|
|
Aluminum Foil: 260*(0.02-0.15)*(Φ400) |
|||
|
Overall Dimension(L*W*H) (including foundation) |
2900*750*1600 |
||
|
Dimension of Each Part |
1500*750*1600(front) |
||
|
1400*750*1450(back) |
|||
|
Weight |
About 1200kg |
||
Applications
This product adopts international popular materials with good sealing,anti-moisture, protecting from light, using a special cold forming. It is a new equipment in the pharmaceutical industry, which will combine both functions, Alu-Alu and Alu-PVC by changing moulds.
Description
- Main motor adopts inverter speed controlling system.
- It adopts newly designed double hopper feeding system with high precision optical control for automatic
- and high efficiency feeding. It is suitable for different blister plate and irregular shape objects.(the feeder
- can be designed according to client’s specific packaging object.)
- Adopting independent guiding track. The moulds are fixed by trapezoid style with easier removing and
- adjusting.
- The machine will stop automatically once the materials are finished. Also it has installed emergency
- stop to keep safety when the workers run the machine.
- Organic glass cover is optional.

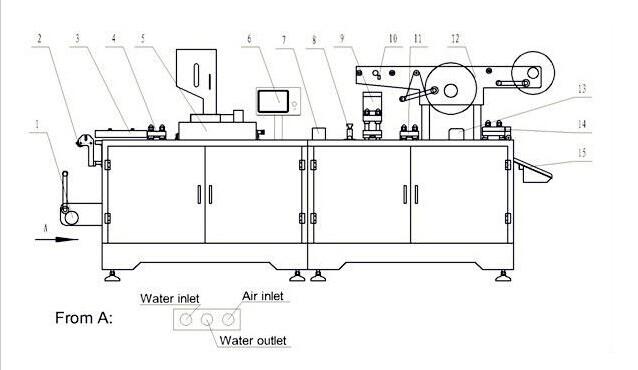

1: PVC feeder 2: PVC transporting roller 3: Heating box 4: Forming mechanism(the material of punch head is PTFE)
5: Medicine feeder(The manual feeding without this station)
6: Touch-screen 7: PTP transporting roller
8: Heat-sealing mechanism 9: Trace-pressing mechanism
10: PTP feeding mechanism & scrap-collector 11: Tow mechanism
12: Blanking mechanism 13: Finished product output
Attention
When make ALU ALU product:
Turn off No.3 (Heating box),change the feeder to shaking type feeder and change molds(Forming up and
down molds, sealing up and down molds, blanking up and down molds)
When make ALU PVC product: Turn on all of the stations.
