Two Flute Flat Square Solid Carbide End Mill Milling Cutting Diameter 1mm - 25mm

 Description

1, Select superior quality imported tungsten steel carbide materials; fine polishing processing;

2, Combine big load chip groove, very sharp cutting edge compared with spiral flutes, can greatly improve production efficiency and quality;

3, Smooth clean cutting, without burrs; Not easy to warp during processing.


We use 100%  original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.

Original raw micro grain material, high hardness and T.R.S.

   1, Co: 10-12%, WC: 88-90%,
        Grain size: 0.4μm,
        Hardness: 92.5-94.0 HRA,
        T.R.S.: 4200-4800 N/mm2,
        Density: 14.3-14.8 G/cm3

   2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum
      Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.

   3, We use our own carbide rod for 90% of cutting tools.

   4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set  up(Japan FANUC, brother processing center) tool laboratory   test cut.Our technology from Taiwan. Guarantee high precision and good performance.

   5, Helix Angle: 38-42 °(we could do 4 of them are 37°)
         Diameter of cutting edge: 1.0-25.0mm
         Diameter of rods: 4-25mm
         Length: 50-100mm
         Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.
         Flutes No.: 2


 Super coating

     TiAN,TiCN TiN  and  ARCO ,
     improve tool life, reduce the coefficient of friction.


 Applications

    Copper, Aluminium Alloy , Cast Iron, Carbon steel, Tool steel,

    Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.


 Price Performance Ratio

   From tungsten powder to end mills, that's the reason of our competitiveness!
   Make sure about each piece end mill has a good quality,high precision and good performance.
   More discount will be offered according to exact quantity.
   Welcome to be our agents, OEM is also available.

Specifications:

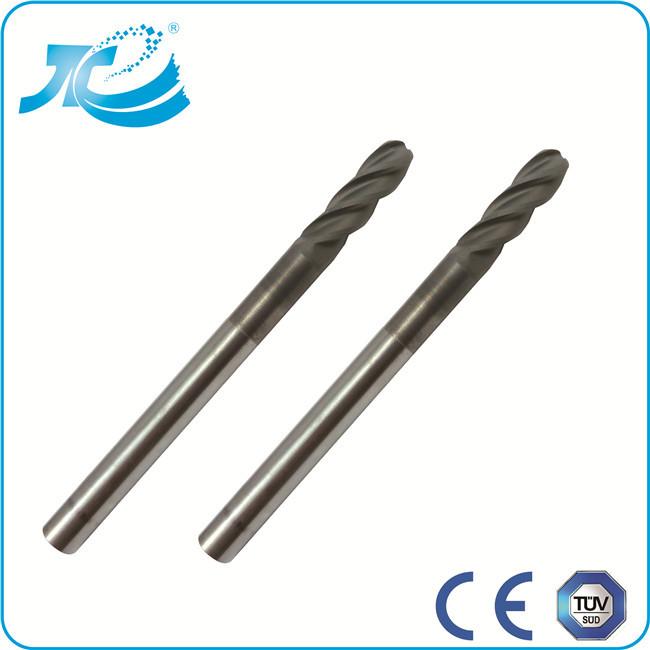

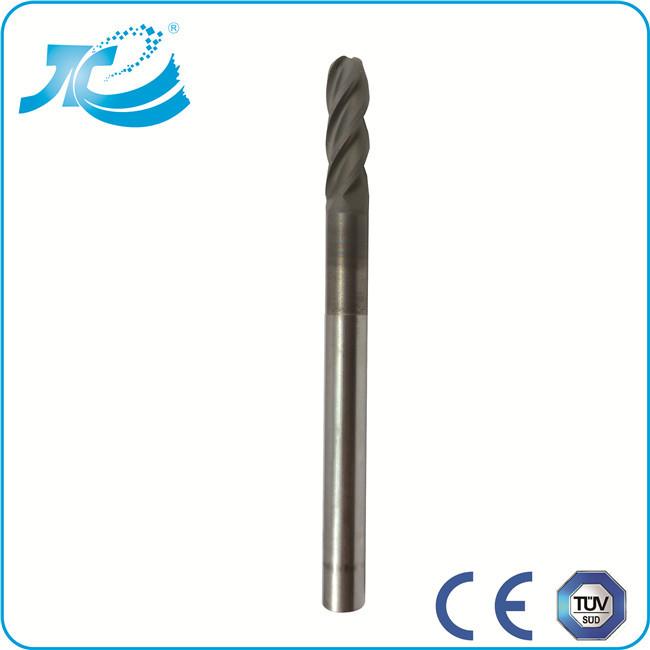

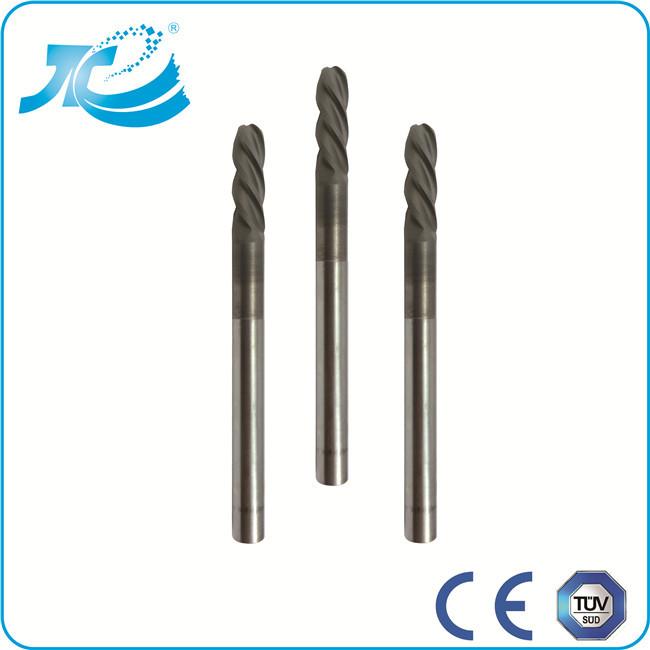

 Products display
