4 LEDs Injection 5050 SMD LED Module High Brightness , 12V LED Module
4 LEDs Injection 5050 SMD LED Module High Brightness , 12V LED Module
Features:
- Super brightness, low lumen decoration, 50,000 working hours, long lifespan
- Warm white: 2700-3000K, Pure white:5500-6500K, Cool white:6500-9000K
- Compact size, smart design
- High quality 5050SMD LED
Application:
- Advertising letter
- Ultra thin light box
- Signage
IP rating: IP65
Technical details:
|
Details |
Item |
Unit |
Specification |
|
Physical data |
LED type |
SMD |
5050SMD |
|
LED Qty |
LED |
4pcs |
|
|
Dimensions |
mm |
37*37*5.7mm |
|
|
Type of protection |
IP |
IP65 |
|
|
Working temperature |
°C |
-40°C - 60°C |
|
|
Electrical data |
Power |
W/pcs |
0.96W |
|
Voltage |
VDC |
12V |
|
|
Optical data |
Luminous flux |
LM |
76-83LM |
|
Beam angle |
degrees |
120 |
|
|
Light color |
|
Warm white/Pure white/White |
|
|
Color BINs |
|
5 BINs |
|
|
Color temperature |
K |
WW:2400/2700-3000 |
|
|
W:5500-6500 |
|||
|
CW: 6500-9000 |
|||
|
Color rendering index |
CRI |
>70 |
|
|
Order reference |
HS code |
94054090 |
|
|
Part. no |
LC-MFAN002-WW/W/CW |
||
|
LC-MFAN002—R (red) |
|||
|
LC-MFAN002-G (green) |
|||
|
LC-MFAN002-B (blue) |
|||
|
LC-MFAN002-Y (yellow) |
|||
Packing details:
|
Name |
HS code |
Packaging unit |
Pieces per box |
Dimensions LxWxH |
Gross weight |
Volume |
| Led module |
94054090 |
Shipping carton box |
500pcs |
50*35*25cm |
11KG |
0.0437cbm |

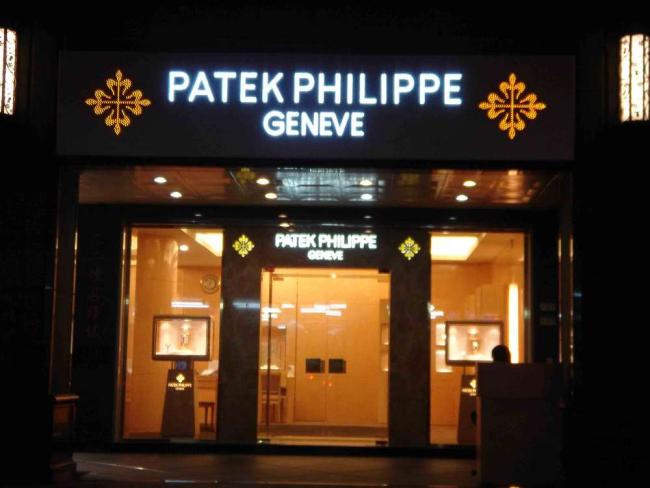

Application example:
a
