YG6X Tungsten carbide Die , Wire Drawing Dies Nibs for cable industry
YG6X Tungsten carbide Die , Wire Drawing Dies Nibs for cable industry
Description:
Tungsten Carbide wire dies are used to draw ferrous and non-ferrous materials, but normally used in steel wire and bar applications. Our process assures the die better wear resistance and highly polished finish.
Features:
High quality alternative for steel wire and bar
Better wear resistance
Highly polished finish
Fine tolerances
Low cost
Hole diameters: 0.40 - 60.00 mm
Typical application areas:
Copper wire
Aluminum wire
Tungsten wire
Molybdenum wire Stainless steel wire
Coated steel wire
Special alloy and high performance alloy wire
Precious metal wire
Various other ferrous and non-ferrous metal wire types
Grade:
| Carbide grade for drawing dies | ||||
| Grade | Density | Hardness | TRS | Performance & application recommended |
| g/cm3 | HRA | MPa | ||
| YG6X | 14.95 | 91.5 | 1800 |
For drawing steel and nonferrous wires or bars of less than 6.00mm under not so much stress. |
| YG6 | 14.95 | 90.5 | 1900 | For drawing steel, nonferrous alloy bars of less than 20.00mm under more stress and also for drawing tubes of less than 10.00mm. |
| YG8 | 14.8 | 89.5 | 2200 |
For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. |
| YG10 | 14.5 | 88.5 | 2400 | |
| YG15 | 14 | 87 | 2800 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
Product types of wire drawing die:
More types can be customized by customer's request.

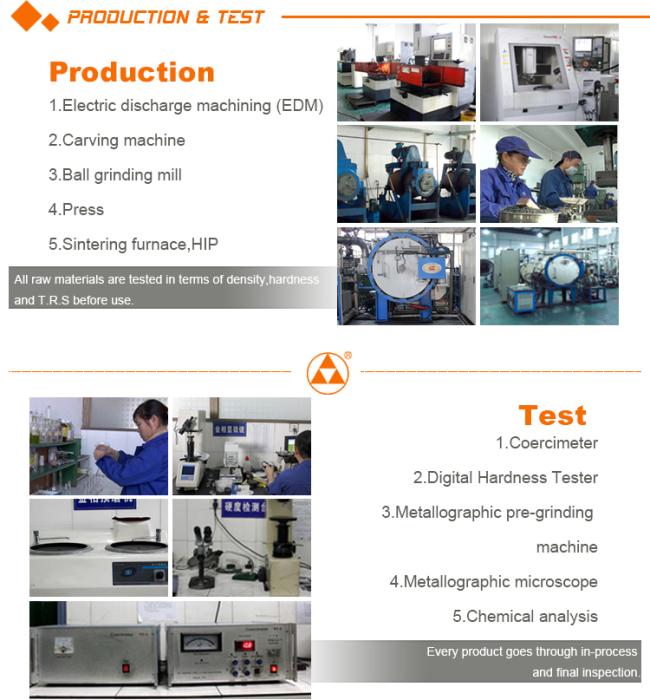

Production:
