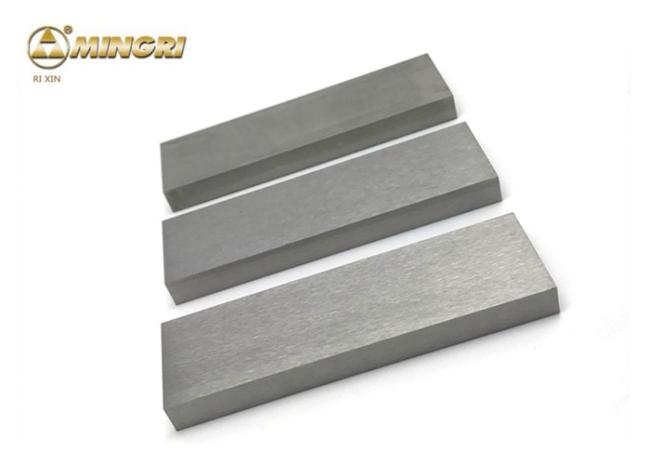

Hard Cemented Carbide Sheet HIP Sintered Blank Finish High Resistant Strength
Hard cemented carbide sheet HIP sintered blank finish YG8 high resistant strength
Specification of cemented carbide sheet
Cemented carbide sheet plates gets oerfect microstructure, good wear resistance and high strength.
Below are sizes available for now, alos we can customize for you.
| L | W | S |
| 200 | 200 | 15-45 |
| 150 | 150 | 15-45 |
| 150 | 100 | 15-45 |
| 150 | 130 | 15-45 |
| 150 | 80 | 15-45 |
| 120 | 120 | 15-45 |
| 100 | 100 | 15-50 |
| 100 | 50 | 15-50 |
| 100 | 45 | 15-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-50 |
| 70 | 35 | 5-50 |
| 45 | 25 | 3-20 |
| 35 | 19 | 5-30 |
| 20 | 20 | 5-20 |
| 18 | 13 | 5-20 |
| ... | ... | ... |
If sizes above are not satisfy with you, we can do as per your needs and drawing.
Description&Application of cemented carbide sheet
| Grade | Properties & Applications | Approx Grades in China | |||
| Density | T.R.S | Hardness | |||
| g/cm3 | MPα | HRA | |||
| YM6A | 14.9 | 1850 | 92.0 | Fine grain alloy, good wear resistance. It is suitable for manufacturing forming cutter, wear-resistant parts etc. | YG6A |
| YM8 | 14.7 | 2400 | 89.5 | High bending strength, wear resistance lower than YM6A, suitable for manufacturing forming cutter, wear-resistant parts etc. | YG8 |
| YM15 | 14.5 | 2500 | 87.5 | Suitable for manufacturing punching dies, wear-resistant parts. | YG15 |
| YM20 | 13.5 | 2800 | 85.5 | High bending strength, suitable for manufacturing progressive dies and other punching dies. | YG20 |
| YM2T | 14.5 | 2350 | 92.0 | Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc. | YS2T |
Cemented carbide sheet plate, is a square material of tungsten steel. Cemented carbide sheet plate can be divided into long thin plate and circular thin plate carbide according to different shapes. Some are squares, but also some are rectangles. In the mold factory, tungsten carbide plate help make mold cores, inserts, shaped punch, wear parts.
We produce cemented carbide sheet plate all processes From the raw materials to the finished product all by ourself. We can guarantee the original material and quality.
Our advantages:
1.100% virgin material.
2.Varies size and type's moulds avialiable for now. Customize is OK.
3.Excellent toughness and high hardness.
4.strict tolerance and extent control.
5.ensure long lifetime.
6.30000KG/month capacity.
7.Sample for testing.

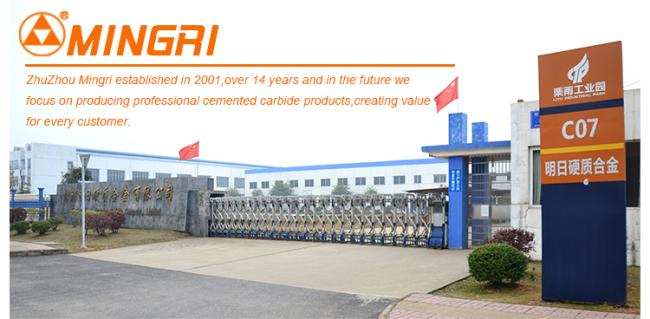

Company introduction:
We are carbide products manufacturer with over 18 years experience.
We mainly produce cold forging die cores, brazed tips, disc cutters, plates and boards, saw tips, round rods, rock drilling bits and buttons, milling tools, geological exploration drill tool, etc.
