Zhuzhou Manufacturer Grinding Tungsten Carbide Mill Roll Rings (TC rings)
Zhuzhou Manufacturer Grinding Tungsten Carbide Mill Roll Rings (TC rings)
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification
More details of specific type, please inform us
| Grade |
Density g/cm3 |
Hardness HRA |
T.R.S MPa |
Performance&application recommend |
|
ML60 |
13.1 |
81.5 |
2950 |
It is suitable for stainless screw dies and semifinishing rollers
|
| ML50 | 13.3 | 82.0 | 2900 | It is suitable for nut forming dies and high impact-resistant dies |
| ML80 | 13.1 | 83.0 | 3200 | It is suitable for screw cap forming dies with high strength (highest impact-resistant forging dies) |
|
other grades and sizes can be offered as per customers' requirements |
||||

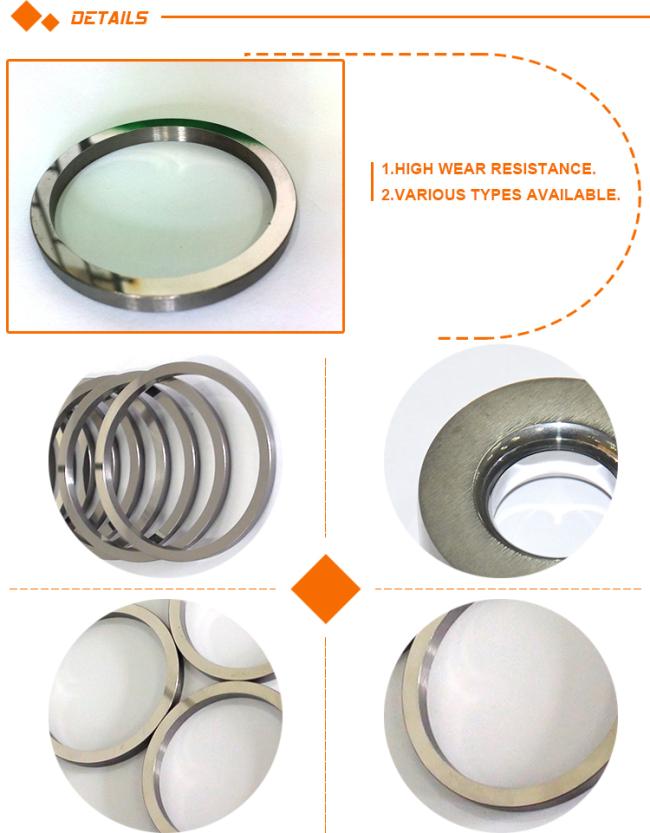

Product characters of carbide roller ring
Virgin raw material, fine processing, high precision, diamond polishing, wear resistance and long service life.
Outer surface is as sintered, inner surface is crowned and diamond polished to 10 micro and no lines and steps to be seen. Make sure no scratches when wires passing through the guides.
Carbide wire guide is made of tungsten carbide for its extremely hard and wear-resistant features, with sophisticated equipment for precision grinding and polishing, coupled with advanced production and processing technology, the inner and the outer diameter of the hole and tolerance R at less than 0.01mm, the surface roughness over the trough reached Ra 0.025 and above, it requires high hardness, smooth surface in use to reduce injury and other enameled wire
High hardness (86 ~ 93HRA, equivalent to 69 ~ 81HRC);
Hot hardness (up to 900 ~ 1000 degree, keeping 60HRC);
Good wear resistance
There are V-groove, R-groove, U-groove trough over other.
V-groove with 90 ° , 110 ° , 120 ° , and other specifications, R-groove ranging from R0.2 to R25. Diameter φ 1-φ 500mm available.
Remark:Customed Size Will be welcomed
Application of carbide roller ring
Tungsten carbide roller Ring are used for machenical seal, water pump, oil pump, flow restrictors, servo seat.
