2 Mm Thickness Steel Coil Embossing Machine Checkered Plate Embossing Machine 1600 Mm

Features for metal embossing machine

The embossing lines suitable for aluminum coil, steel metal, steel sheets, steel coil, color steel coil, galvanized steel coil.

We can make many flower patterns, such as wood grain pattern, window leaf, cheaked plate, diamond, orange, grain rice, pearl, stone, oval, etc, also the patterns can be designed according to customers' requirements.

Embossing pattern are suitable for many areas, widely used, like heat shield, car, home appliances, freezer, icehouse, building outer walls, Corrugated Roof, elevator, platform floor, garage gates, safe doors, stair anti-skidding, Machinery manufacturing, etc.

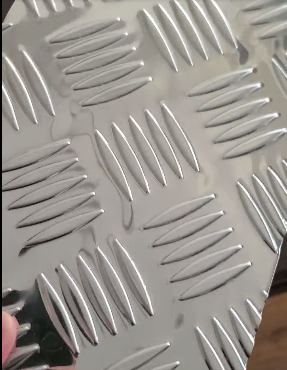

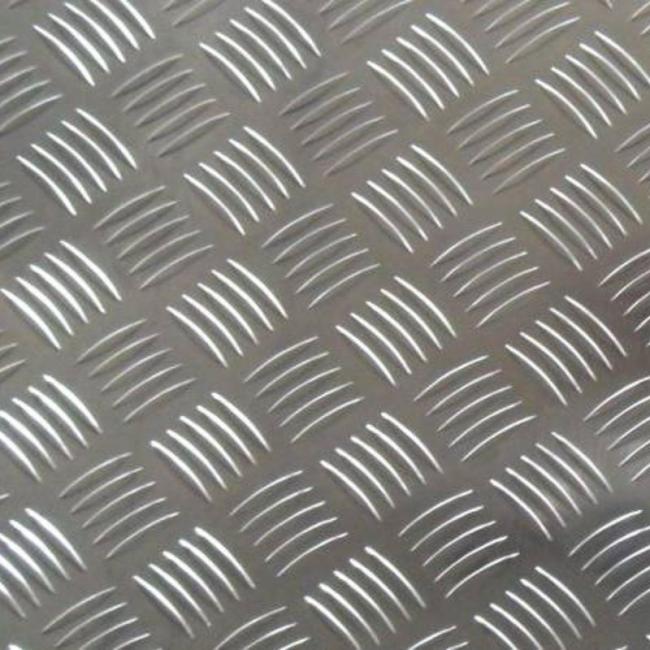

Flower Pattern

Metal sheets steel plate diamond checker pattern embossing machine is for producing embossed pattern sheets (Pattern can be customized).The common materials used for this machine are carbon steel,middle-steel ,or galavnized material,etc
Metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension.

The technique data of embossing machine

1. 20 tons hydraulic de-coiler with coil car

Coil inner Diameter: ￠508-610mm

Max out diameter of the coil: ￠1500mm

Max Coil Width: 1800mm

2.Embossing Machine Parameter

1.Roller specification:Φ550*1900mm

2.Roller pattern: As photo

3.Roller material: forged steel 40Cr

4.Roller hardness:HRC55-58

5.Motor power: 15KW 380V 50Hz 3Phase motor

6.Embossing method: turbo vortex rod pressure regulation

7.Transmission mode: frequency conversion speed regulation

8.Frame structure: steel plate combined structural parts

9.Electric control part: independent control cabinet

10.Between the rolls: the gap can be adjusted

11.Line Speed:About 5-10m/min;

12.Thickness of plate:0.3-1.0mm*1800mm aluminum.

3.Leveling machine Parameter

1. Thickness of plate: 0.3-1.0mm aluminum

2. Max material width:1800mm

3. Roller material: forged steel 40Cr

3. Leveling speed: About 5-10m/min

4. Power supply: 11KW, 380V 50HZ 3Phase

4.Hydraulic cutting

1. Cutting material thickness: 0.3-1.0mm

2. Cutting length: 0~9999mm.

3. The speed: is 5-10m/min

4. Cutting length tolerance: +- 1mm

4. Control system: frequency conversion system;
