85 * 150mm C Profile Channel Roll Forming Machine Galvanized Steel 1.2 - 2.6mm 22KW
Size 85*150mm Galvanized Steel 1.2-2.6mm C Profile Channel Roll Forming Machine for Solar Panel
1. C Channel Machine Technical Parameter
| Machine Specifications | |
|---|---|
| Weight | About 10000kgs |
| Size | About 20m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized steel |
| Thickness | 1.2-2.6mm |
| Yield Strength | 350-500Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 75mm |
| Working Speed | 8-12m/min |
| Forming rollers material | Gr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about 22 kw |
| Hydraulic station | Motor 5.5kw |
2. C Channel Machine Components

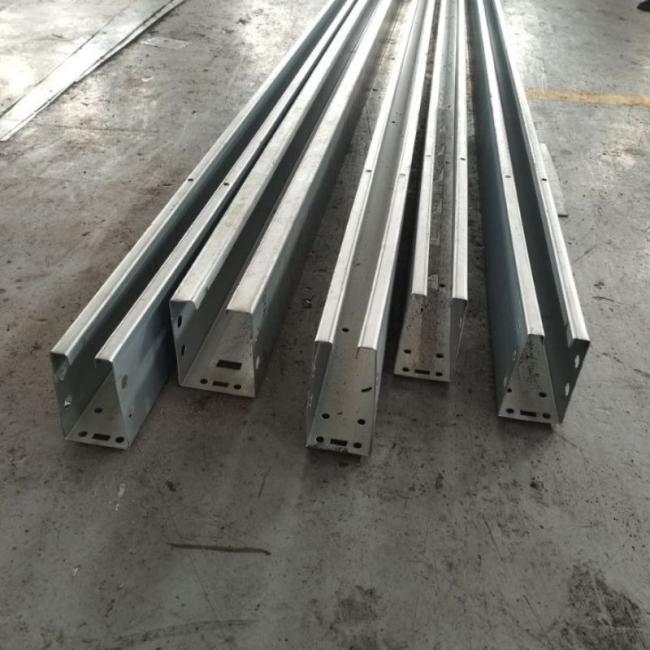

C strut roll forming machine can produce several shape products as profile.
The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.
when change different specification, need to change the cutting mould.
|
S.N |
Equipment name |
Quantity |
|
1 |
5T hydraulic un-coiler |
1 set |
|
2 |
Feeding guide |
1 set |
|
3 |
Weld machine with cutting |
1 set |
|
4 |

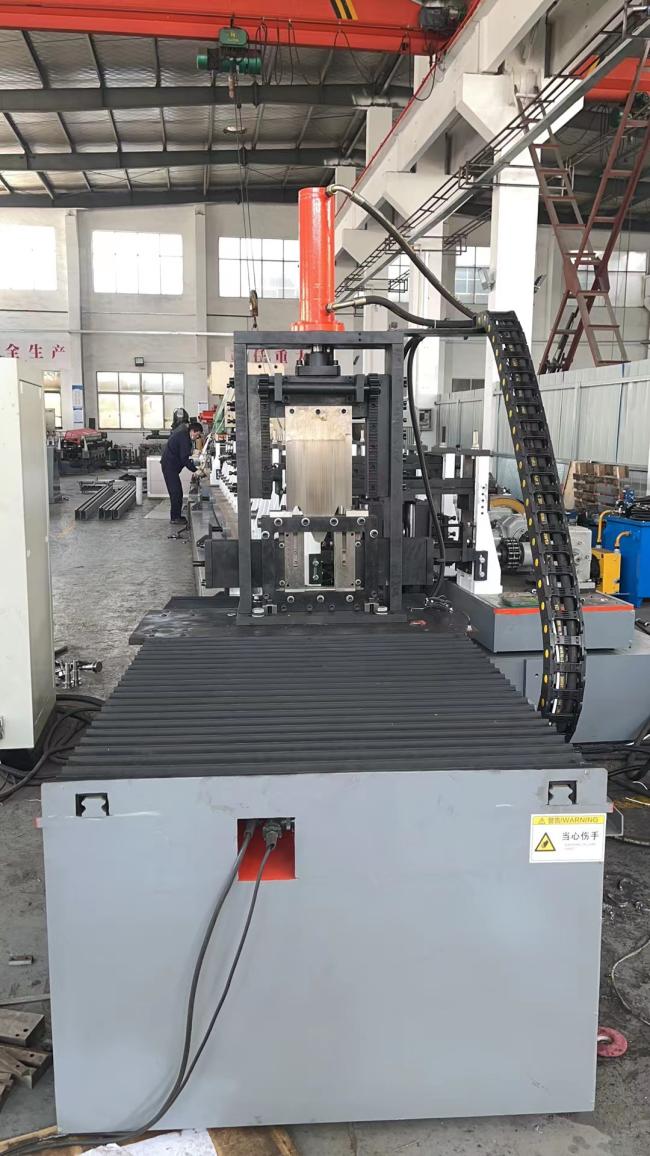

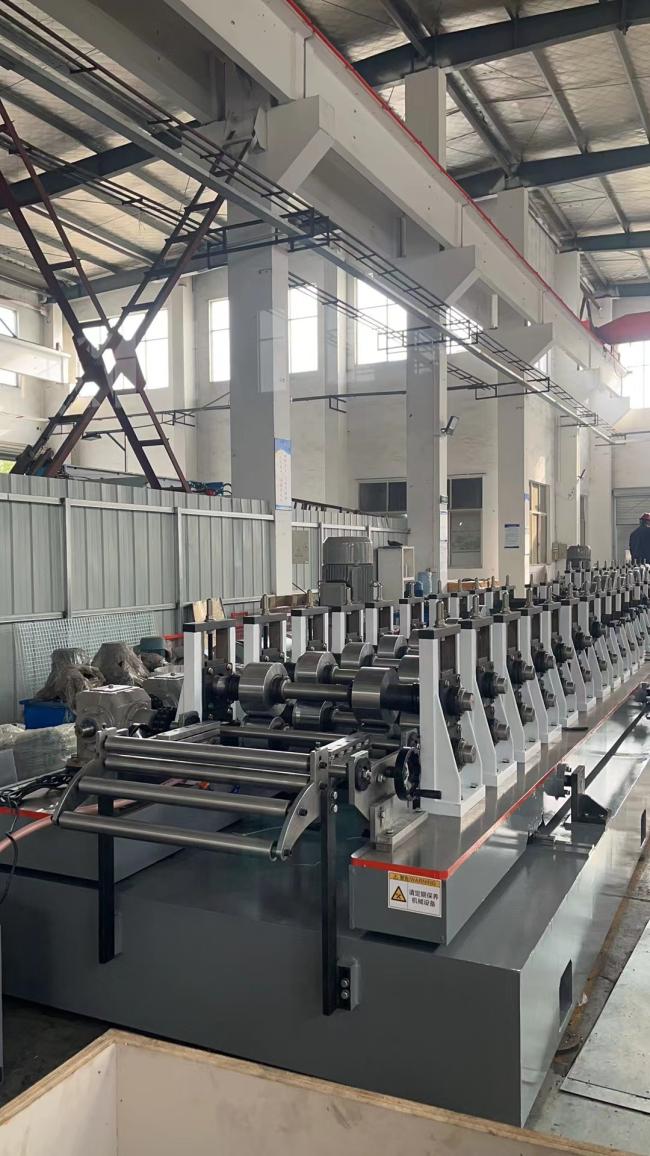

Main roll forming machine |
1 unit |
|
6 |
Servo following cutting |
1 set |
|
7 |
control box |
1 set |
|
8 |
Out tables |
2 units |
3. C Strut Channel Application
1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.
2.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.
