Decorative Grid Roll Forming Machine 50*10mm Aluminum Metal Grilyato Suspended Ceiling
Price:
negotiable
MOQ:
1 set
Delivery Time:
60-70 working days after deposit
Brand:
SUSSMAN
Product Description
50*10mm Aluminum Metal Grilyato Suspended Ceiling Decorative Grid Roll Forming Machine
Suspended cellular ceiling Grilyato is great for masking any engineering systems and communications located on the ceiling. At the same time, the design does not complicate the operation of the systems and allows maintenance without problems due to the dismantling of individual cassettes. Grilyato ceilings also reduce the overall noise level in the room due to the cellular structure, contributing to the creation of more comfortable conditions for work or leisure.
Open Cell Metal Ceiling production line is mainly use to produce the main and cross for open cell metal ceiling. There are decoiler, straightener, perforation press, cut-to-length and roll forming machine in the production line with electric system and hydraulic system. The main and cross which produce by our machine can be installed as open cell ceiling by manual. For ensure the production line more stable, we install the protect cover for this machine.
Technical Data:
1. Suitable Plate Material: thickness 0.3-0.4mm, Galvanized steel
2. Working Speed: 0-5 meters /min adjustable
3. Forming Steps: about 12 stations
4. Material of Roller: 45# Steel,
5. Material of Shaft: 45# Advanced Steel (Diameter: 50mm), thermal refining
6. Driven system:Chain driven
7. Main Power with reducer: 5.5KW WH Chinese Famous
8 Power supplier: 380V, 50 Hz, 3Phases, according to customer's requirements
9. The whole machine is controlled by PLC.
2. Working Speed: 0-5 meters /min adjustable
3. Forming Steps: about 12 stations
4. Material of Roller: 45# Steel,
5. Material of Shaft: 45# Advanced Steel (Diameter: 50mm), thermal refining
6. Driven system:Chain driven
7. Main Power with reducer: 5.5KW WH Chinese Famous
8 Power supplier: 380V, 50 Hz, 3Phases, according to customer's requirements
9. The whole machine is controlled by PLC.
Machine List:

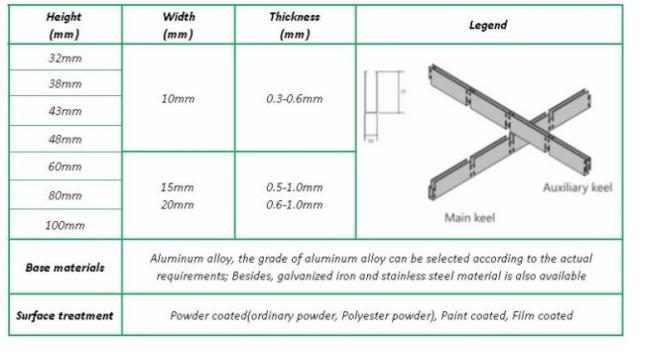

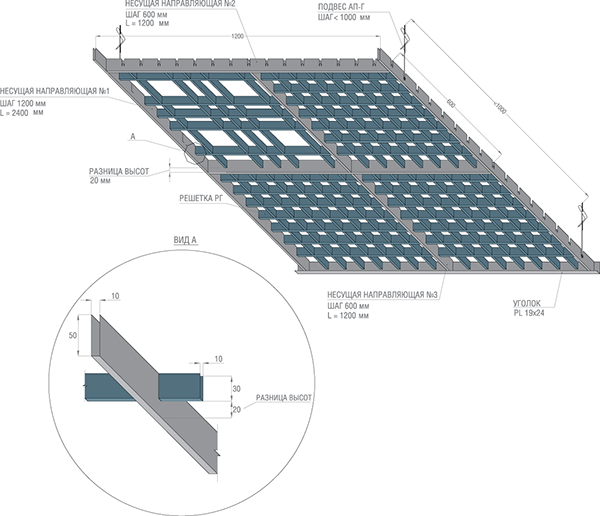

Profile Drawing:

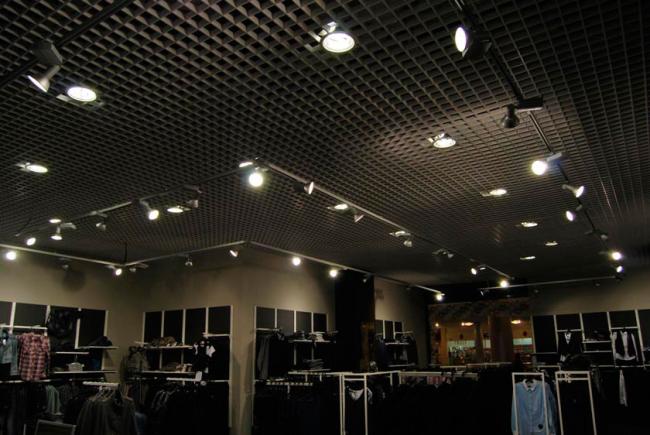

Application:
It is widely used on industrial and commercial buildings, building decorative material market, subway, other big places, interior partitions, suspended ceiling, airport, bus station, museum, opera house, exhibition hall, shopping centre, conference hall, bar and etc.
