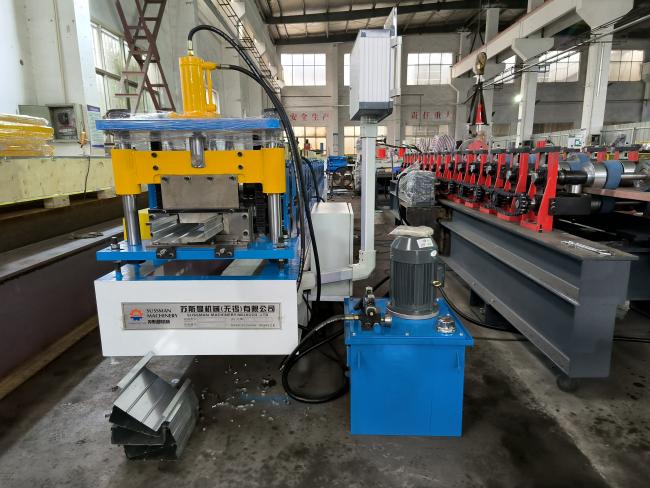

Aluminum Panel 0.6-0.8mm Thickness Metal Patio Cover Flat Pan Roof Roll Forming Machine
Aluminum Panel 0.6-0.8mm Thickness Metal Patio Cover Flat Pan Roof Roll Forming Machine
Flat pan patio covers are a practical and visually appealing choice for homeowners and commercial properties looking to add shade and protection over outdoor areas. With their low maintenance, durability, and straightforward installation, they provide a cost-effective way to expand usable outdoor space and enhance property value.
1. Technical Parameter
| Product Name | Patio cover roof flat pan roll forming machine | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI/PPGL/Aluminum |
| Material thickness | Aluminum: 0.7-1.2mm; Steel:0.5-0.8mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Base frame | H450 type steel |
| Roller material | 45# high grade steel with hard chrome coating | |
| Hardness | Heat treatment to HRC50-55 degree | |
| Roller station | 20 | |
| Shaft diameter | 75mm | |
| Machine size | 9000*1000*1500mm | |
| Machine weight | 6 tons | |
| Machine color | standard | |
| Working speed | 8-15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degree |
| Cutting tolerance | ±1mm | |
| Material | Cr12MoV | |
| Operate | By PLC | |
| Power | Driving way | Chain transmission, |
| Main motor | 7.5KW | |
| Pump motor for cutter | 4kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph --customized | |
| PLC Control System | Inverter | Schneider |
| Touch Screen | Schneider | |
| Encoder | OMRON | |
| Cut-to-length tolerance | ±1mm | |
2. Machine List
|
3 tons manual de-coiler |
1 set |
|
Feeding with guide |
1 set |
|
Main roll forming machine |
1 set |
|
Hydrualic Cutting machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
4 meters Passive Out table |
2 units |
|
Safety cover |
1 unit |

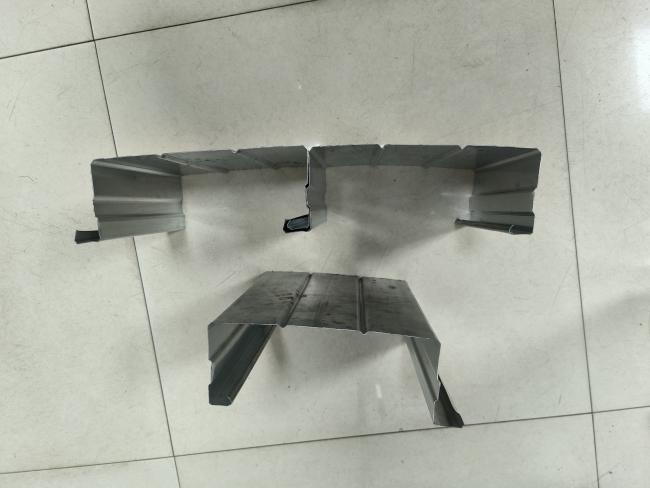

3. Profile Drawing

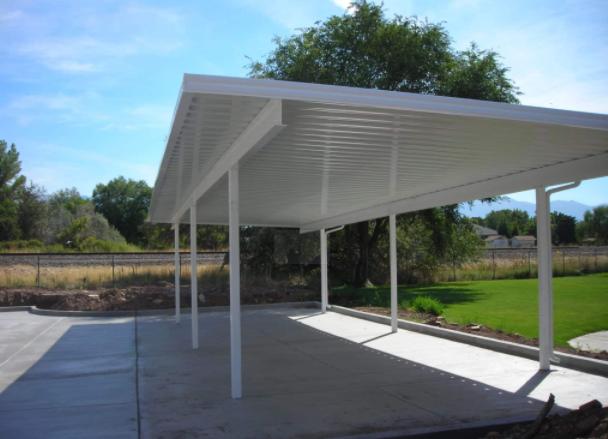

A patio cover flat pan is a type of aluminum or steel roofing system designed to provide shade and protection over outdoor patio areas. The term "flat pan" refers to the design of the roofing panels, which are typically flat and have minimal ribbing or grooves, giving a clean and sleek appearance. Flat pan patio covers are popular for their ease of installation, durability, and aesthetic appeal.
Key Features of Flat Pan Patio Covers:
- Flat Panel Design: The flat surface of these panels provides a smooth look that can complement various architectural styles.
- Durable Material: Typically made from aluminum or steel, flat pans are corrosion-resistant and can withstand exposure to the elements, including sun, rain, and snow.
- Modular Construction: The panels are usually interlocking, making installation straightforward and creating a seamless, leak-proof surface.
- Drainage Options: Some systems have built-in gutter systems that direct water away from the patio area, helping to prevent pooling or leaks.
- Customization: Available in various colors, finishes, and sizes, allowing customization to match home or landscape aesthetics.
4. Application
Applications of Flat Pan Patio Covers:
- Residential Patios: Protects patios and decks, extending the living space into the outdoors while providing a comfortable shaded area.
- Commercial Outdoor Areas: Used in restaurants, cafes, and other commercial spaces to create outdoor seating areas.
- Carports and Walkways: Flat pan covers are also used for carports or walkways to protect vehicles and pathways from the elements.
Advantages of Flat Pan Patio Covers:
- Weather Protection: Provides effective shelter from sun, rain, and other elements, allowing outdoor enjoyment in a protected space.
- Easy Installation: The interlocking design of flat panels makes for quick and efficient installation, even as a DIY project for some.
- Low Maintenance: Aluminum and steel require minimal upkeep compared to other materials like wood.
- Sleek Aesthetic: The flat pan style offers a modern, streamlined look that blends well with contemporary and traditional home designs.
- Cost-Effective: Flat pan covers are often more affordable than insulated covers or other types of patio roofing, while still offering durability and protection.
5. Packaging & Shipping
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.
