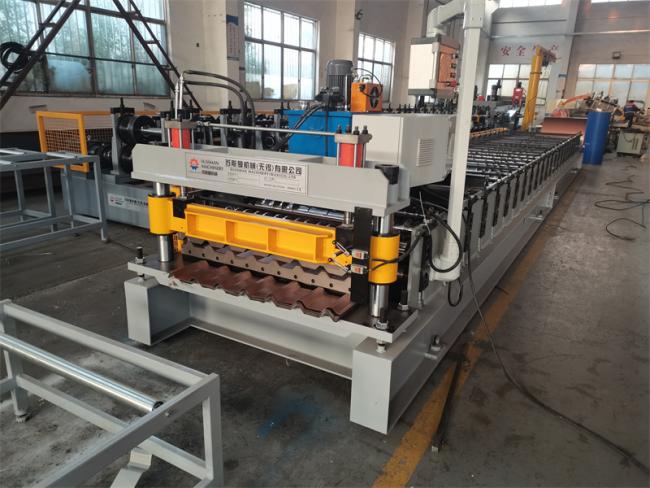

Mexico Popular R101 Trapezoidal Roof Sheet Roll Forming Machine With Chain Drive And Thickness Calibre 26
Thickness Calibre 26 Mexico Popular Lamina R101 Trapezoidal Roof Sheet Roll Forming Machine
The R101 sheet model is a rectangular steel sheet that has 7 channels that make up its profile. The use of a sheet like this is found in roofs, industrial warehouses and in enclosures that need a stable structural capacity with a good drainage system for roofs.
Technical parameter:
Rolling Speed: 0-10m/min
Feeding width: 1219mm
Steel sheet Thickness: 0.3-0.8mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 24 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 4kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: 220V or 480V
Way Of Drive: chain
Machine List
| Machine list | 5 tons manual de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |

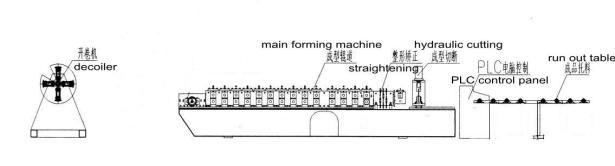

working flow
Profile Drawing
Hiding power 1008 mm. (39.685 PLG)
Camber: 2.46 cm (0.9685 PLG)
materials: Galvanized steel, Color steel, Aluminum.
Application:
- Industrial and commercial roofing.
- Residential roofing (where a modern metal look is preferred).
- Warehouse and factory walls.
