Chain Drive Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
Calibre 26 Lamina R101 Profile Trapezoidal Metal Sheet Roofing Roll Forming Machine For Residential Buildings
R-101 roll forming machine is fully automatically to produce R-101 trapezoidal metal roofing sheets from steel or aluminum coils.
It automates the process of forming the R-101 profile, ensuring precision, efficiency, and high production output.
Technical parameter:
Rolling Speed: 0-10m/min
Feeding width: 1219mm
Steel sheet Thickness: 0.3-0.8mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 24 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 4kw
Tolerance: +1.5mm
Power supplier: 220V or 480V
Way Of Drive: chain
Machine List
| Machine list | 5 tons passive de-coiler | 1 set |
| Feeding with guide | ||
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Safety cover | 1 set | |
| Spare parts | 1 set |
working flow

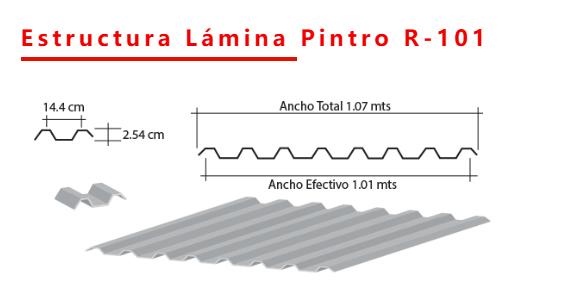

R-101 Roof Sheet Profile
- Trapezoidal shape with deep ribs for strength and water drainage.
- Typically made of galvanized steel, aluminum, or pre-painted metal sheets.
- Effective cover width: ~101 cm (varies by manufacturer).
- Rib height: usually around 3-5 cm.
- Provides high load resistance and structural durability.
Application:
- Industrial and commercial roofing.
- Residential roofing (where a modern metal look is preferred).
- Warehouse and factory walls.
